Greenlandplast Waste Pet Bottle Recycling Machine Pet Flakes Washing Recycling Line Plastic Washing Line
| US$10,000.00-300,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
PET500
Material Processed
Plastic Bottle
Plastic Type
PET
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008
Transport Package
Exporting Container
Specification
40cbm
Trademark
Greenlandplast
Origin
China
HS Code
8477
Production Capacity
30sets /Year
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg
Product Description
Product DescriptionGreenlandplast Waste PET Bottle Recycling Machine Pet Flakes Washing Recycling Line Plastic Washing Line

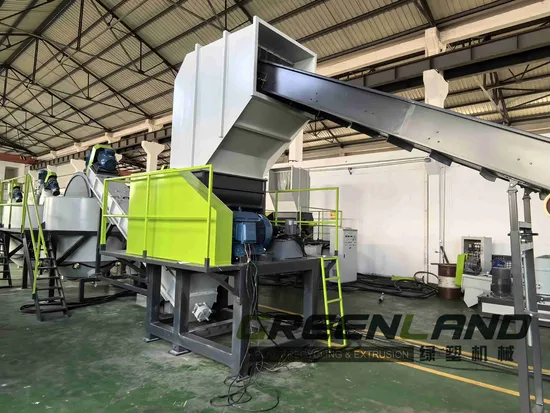

This PET bottle recycling line is mainly used to recycle waste PET bottles to make PET flakes ,mainly inclue de-baling machine, conveyor belt, label remover, sorting system,crushing, floating washing tank, hot washing tank, frication washing, dewatering &hot air drying system, label separator a,with the above machines and process can easily to remove the labels, caps, rings, glue, dirties and other impurities, finally you will produce to clean PET flakes.It can reach achieve request of "Bottle to Bottle" ,"Bottle to Fiber product"
We can make recycling line according to different customize requirements!
Product Parameters
Technical dates
| Capacity | Installation power | Area required | Labor required | Water supply |
| 500kg/h | 155kwh | 35*10*6m | 5-6 | 3t/h |
| 1000kg/h | 285kwh | 50*12*6m | 6-8 | 4t/h |
| 1500kg/h | 350kwh | 70*12*6m | 6-8 | 5t/h |
| 2000kg/h | 485kwh | 80*15*6m | 9-10 | 6t/h |
| 3000kg/h | 690kwh | 100*18*7m | 10-12 | 7t/h |
Detailed Photos
Label remover
Remove label ,caps,neck-rings,get rid of non-PET part effectively ,max can reach 95-98% ,according to customers' choice and bottles conditions ,there are dry type and wet type label removing options
Belt conveyor &Crusher
Crush PET bottles, SKD material blade,can work with water,make PET flakes cleaner
Screw loader/friction washer
to convey PET flakes into next process machine ,stainless steel 304
Floating washing tank
Washing PET flakes ,at the same time ,separate and remove PVC labels and HDPE cap chips,stainless steel 304
Hot washing tank
Electricity heating or steam heating,automatical temperature controlling system ,may add NaOH or other detergent,can remove PET flakes glue and oil
High speed friction washing/dewatering machine
to dry and clean PET flakes by high speed friction
Hot air drying&zig-zag separator
dry PET flakes after dewatering further step,by hot air ,electricity heating
Packaging & Shipping
