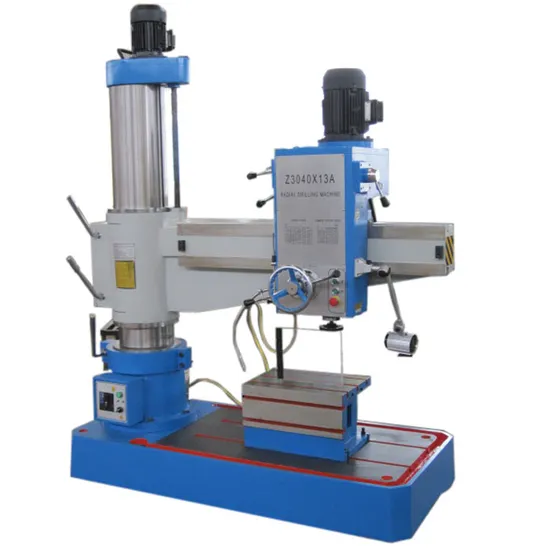

High Quality Universal Mechanical Radial Drilling Machine for Sale
| US$3,676.00-5,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3040
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
4
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Name
Radial Driling Machine
Max. Drilling Capacity
40mm
Distance Spindle Axis to Column
1100mm
Spindle Taper
Mt4
Spindle Travel
180mm
Spindle Speeds
75-1200rpm,
Range of Spindle Feeds
0.01-0.25
Distance Spindle to Table
320-1180mm
Main Motor
2.2kw
Lifting Motor
2500×1060×2650mm075kw
Dia. of Column
230mm
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84592900
Production Capacity
100PCS/Month
Product Description
High quality universal mechanical radial drilling machine for saleFeature: 1. Gather mechanical-electrical-hydraulic functions, use extensively.2. With wide range of speed and feed, with manual,power and fine feeds.
3. The feed of machines are very easily engaged and disengagedat any time.
4. With safe and reliable feed safety machine, all parts easy operation and change.
5. All controls centralized on the head stock easy operation and change.
6. Clamping for assembli-es and speed change of spindle achieved by hydroulic power, cmle is sensitna owet nelile.
7. Main parts are made by machine center which import form KIA with high precision and efficiency,ensuring reliability and high quality.
8. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
9. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
10. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Standard accessories
* Box shape worktable
* Taper sleeve
* Tool releasing Wrench
* Drift
* Eyelet bolts
Special accessories
* Quick instead chuck
* Tapping chuck
* Grease gun
| Model | Z3032×10 | Z3040×10 | Z3040×11 | Z3040×13 |
| Max drilling cpacity(MM) | 32 | 40 | 40 | 40 |
| Distance from spindle center to column(MM) | max:980 min:220 | max:900 min:300 | max:1000 min: 300 | max:1200 min:300 |
| Distance from spindle nose to base(MM) | max:1000 min:260 | max:1050 min:60 | max:1050 min:150 | max:1100 min:230 |
| Spindle horizontal movement | 700 | 700 | 700 | 700 |
| Spindle travel(MM) | 120 | 270 | 270 | 270 |
| Spindle taper | MT4 | MT4 | MT4 | MT4 |
| Spindle speed(R/MIN) | 6 steps 108-1000 | 12 steps 46---1220 | 12 steps 46---1220 | 12 steps 46---1220 |
| Column diameter(MM) | 180 | 200 | 220 | 240 |
| Spindle feed (MM/R) | 3 steps 0.10 - 0.25 | 3 steps 0.10 - 0.25 | 3 steps 0.10 - 0.25 | |
| Main motor(KW) | 1.5/2.2 | 1.5/2.2 | 1.5/2.2 | 1.5/2.2 |
| Lifting motor(KW) | 0.75 | 0.75 | 0.55 | 1.1 |
| weight(KG) | 650 | 1100 | 1300 | 1500 |
| dimension(mm) | 1400×680×2100 | 1500×750×2150 | 1650×780×2150 | 1830×830×2250 |
