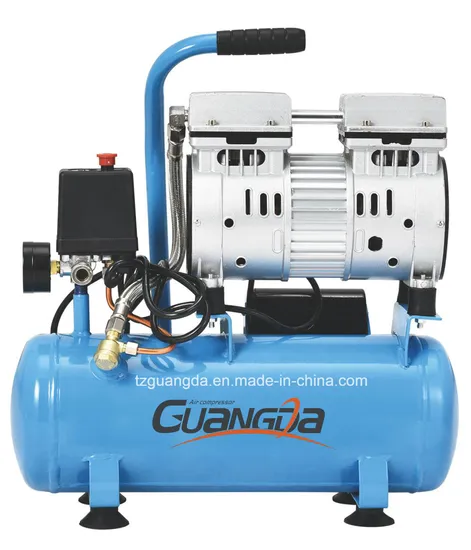

Gdg09 9L 550W 0.75HP 750W 1HP Direct Driven Compressor Silent Oil Free Air Compressor

Product Description

Specification

Oil Free & Slient Air Compressor
Model	GDG09
Electric Motor	480W/550W/0.55KW,single phase
Tank	9L/2.4Gal
Pressure	8BAR/115PSI
Capacity	50L/min/1.8CFM
Speed	1480RPM
Piston Diameter x Qty.	Ø63.7mm*2pcs
Weight	18kg
L*W*H	460*200*530mm

Main Features1.Heavy cast iron body: heavy load, long stroke, low fuel consumption, low noise
2.Cylinder: made of high-grade cast iron, strength, good lubricity, wall by the fine honing, wear-resistant, durable
3.Piston ring: good elasticity, excellent wear resistance, low oil consumption, not easy to make the valve group carbon deposition and loss of oil to burn the crankshaft and connecting rod.
4.The crankshaft, connecting rod, piston: well balanced, wear resistance, high strength, smooth running balance.
5.High reliable and durable valve; strong aluminum alloy body, light and heat.
6.The motor provides reliable power, low voltage startup and running performance strong fan cooled motor and body; special shock proof design.
7.Double nozzles, were used to direct the exhaust and pressure exhaust; pressure switch with push button, safe and convenient
Certificates


Packing:
Outer packing is honey-comb carton with belts,inner packing is a transparent bag.We could accept customers special request,such as:print brand,specification,good's picture.

Brief introduction:
Taizhou City Ouye(Guangda) Electromechanical Co.,Ltd: specializes in screw and piston air compressors;-such as:permanent magnet frequency conversion screw type, belt driven air compressor,direct driven air compressor,oil free air compressor,gasoline air compressor and diesel air compressor.cutting machines;sitting board machines;air compressor pumps;access series and so on.
We introduce domestic and overseas advanced technology to make high-quality products.Our products have been sold to the United States, UK,Poland, Brazil,Russia, South Korea, Australia,Chile,Argentina,Dubai,Banglandesh,Turkey,Moldova,and so on .They have a good reputation at home and abroad. We are both professional manufacturer and exporter , so our products are high quality with competitive price.

Frequency Asked Question
1.Are you the manufacturer or trading company?
We are the manufacturer.
2.Where is your factory?
It is located in Taizhou City,Zhejiang Province,China.
3.What's the terms of trade?
FOB,CFR,CIF or EXW are all acceptable.
4.What's the terms of payment?
T/T,L/C at sight or cash.
5.What's the lead time?
About 25 days after receiving the deposit on our bank account.
6.Do you accept sample order?
Yes,we accept.
7.What about the cost of sample?
You have to pay the freight charge.But the cost of product could be refundable,if you will purchase 1x40'HQ container in the future.
We are looking forward to establishing long-term business relationships with your esteemed company!
