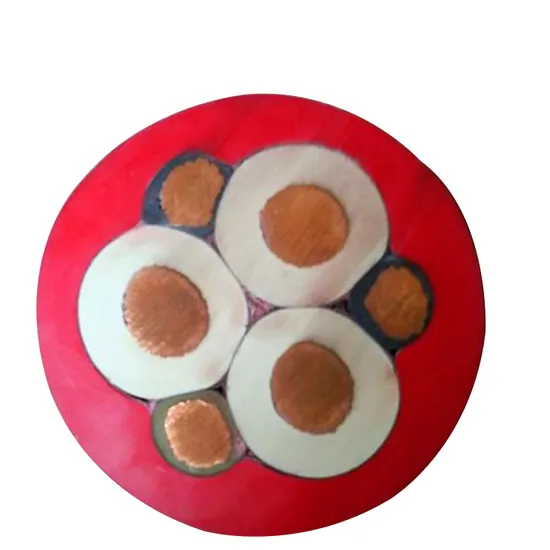

Crane Machinery Use Power Flexible Cable Rubber Welding Cable Silicone Rubber Cable
| US$0.10-1.99 | 500 Meters (MOQ) |
Basic Info.
Model NO.
H05RR-F/H05RNH2-F
Current
DC & AC
Insulation Material
Rubber
Sheath Material
Rubber
Material Shape
Round Wire
Wire Core Material
Tinned Wire
Certification
ISO, CCC, CE, RoHS, VDE
Model
YC
Brand
Qinshan
Transport Package
Wooden Plate
Specification
0.75-4.0MM2
Trademark
QINSHAN
Origin
China
HS Code
8544492900
Production Capacity
6000000meters/Year
Product Description
Crane Machinery Use Power Flexible Cable Rubber Welding Cable Silicone Rubber CableStandard :IEC60245 / VED 0282
Construction : 1.Conductor: Annealed flexible copper conductor (class5) or Tinned Copper conductor(Class5) for Flat Rubber 2.Insulation:EPR Rubber(Ethylence-propylene) 3.Insulation Color: 2core :Blue/Brown(Flat Rubber)
3core :Blue/Brown/Yellow&Green
4core :Blue/Brown/Yellow&Green/Grey
5core :Blue/Brown/Yellow&Green/Grey/Black 4.Sheath:EPR Rubber(Ethylene-Propylene
CR Rubber(Poly-chloroprene) for Flat Rubber 5.Sheath Color:Customized
Characteristic:
1.Temperature Rating: -30ºC up to 70ºC
2.Voltage Rating:300/500V
3.Testing Voltage:2000V
4.Min inner bending radius: 7x overall diameter
4x overall diameter for Flat Rubber
5.Behaviour in fire: Flame retardant to IEC60332-1
Application:
Light rubber cable H05RR-F is used for easy-duty and medium mechanical loads in dry areas.Suitable for household,kitchens,offices and workshops for smaller electrical devices(washing,vacuum-cleaners,irons,household appliances,soldering sets) and mobile devices operating in heavier conditions,such as light industrial and agricultural machines. Not suitable for permanent outdoor use. Ozone-resistant,allowed contact with oils.greases. Flat rubber cable H05RNH2-F is used for decorative lighting. Suitable for in dry,damp or wet areas,indoor & outdoor, as the insulated conductor for lighting fixtures on squares,in garden.
Technical Parameters:
| No.of cores x Nominal section area | Nominal Construction of conductor | Nominal Insulation thickness | Nominal Sheath thickness | Nominal Overall diameter | Nominal Cable weight | Max.Resistance of conductor at 20ºC |
| No.X mm² | No.X mm | mm | mm | mm | kg/km | <=(Ω/km) |
| H05RR-F Round Light Rubber Cable 300/500V | ||||||
| 2x0.75 | 24X0.20 | 0,6 | 0.8 | 6.1 | 53 | 26.7 |
| 2x1.0 | 32X0.20 | 0,6 | 0.9 | 6.6 | 64 | 20 |
| 2x1.5 | 30X0.25 | 0,8 | 1 | 7.8 | 95 | 13.7 |
| 2x2.5 | 50X0.25 | 0,9 | 1.1 | 9.2 | 140 | 8.21 |
| 2x4.0 | 56X0.30 | 1,0 | 1,2 | 10.8 | 180 | 4.95 |
| 3x0.75 | 24X0.20 | 0,6 | 0.8 | 6.6 | 65 | 26.7 |
| 3x1.0 | 32X0.20 | 0,6 | 0.9 | 7.0 | 77 | 20 |
| 3x1.5 | 30X0.25 | 0,8 | 1 | 8.4 | 115 | 13.7 |
| 3x2.5 | 50X0.25 | 0,9 | 1.1 | 9.9 | 170 | 8.21 |
| 3x4.0 | 56X0.30 | 1,0 | 1.2 | 11.7 | 240 | 4.95 |
| 4x0.75 | 24X0.20 | 0,6 | 0.8 | 7.3 | 80 | 26.7 |
| 4x1.0 | 32X0.20 | 0,6 | 0.9 | 7.6 | 95 | 20 |
| 4x1.5 | 30X0.25 | 0,8 | 1.0 | 9.4 | 145 | 13.7 |
| 4x2.5 | 50X0.25 | 0,9 | 1.1 | 11.1 | 210 | 8.21 |
| 4x4.0 | 56X0.30 | 1,0 | 1.2 | 13 | 300 | 4.95 |
| 5x0.75 | 24X0.20 | 0,6 | 0.8 | 8.1 | 100 | 26.7 |
| 5x1.0 | 32X0.20 | 0,6 | 0.9 | 8.4 | 115 | 20 |
| 5x1.5 | 30X0.25 | 0,8 | 1.0 | 10.3 | 170 | 13.7 |
| 5x2.5 | 50X0.25 | 0,9 | 1.1 | 12.4 | 255 | 8.21 |
| 5x4.0 | 56X0.30 | 1,0 | 1.2 | 14.5 | 355 | 4.95 |
| H05RNH2-F Flat Rubber Cable 300/500V | ||||||
| 2x0.75 | 30X0.25 | 0.8 | 1 | 5.0x13.0 | 122 | 13.7 |
| 2x1.0 | 50X0.25 | 0.8 | 1.1 | 5.7x13.3 | 147 | 8.21 |
