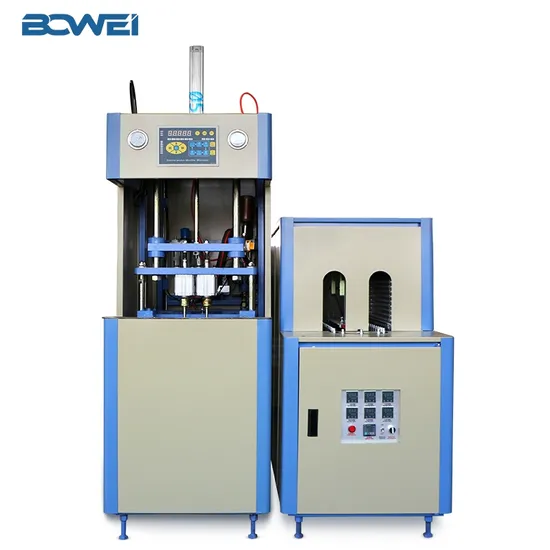

Semi Automatic Pet Bottle Blow Moulding Machine Plastic Bottles Blowing Machinery Equipment
Basic Info.
Model NO.
SBM-880
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Non-Computerized
Certification
CE, ISO9001:2008, SGS
Machine Dimension(L x W x H)
1.66X0.74X2.2 M
Machine Weight
700kgs (Approx)
Preheater Dimension(L x W x H)
1.46X0.71X1.58 M
Preheater Weight
300 Kgs(Approx)
Output Capacity
700-1000 Bph
Power Consumption
12 Kw
Power Supply
220~380V/50~60 Hz
Item Name
Sbm880 Semi Automatic Pet Bottle Blow Moulding Mac
Transport Package
Export Wooden Case
Trademark
Bowei
Origin
China
HS Code
84774090
Production Capacity
700-1000bph
Product Description
Sbm880 semi automatic Pet Bottle blow moulding Machine plastic bottles Blowing Machinery EquipmentApplication
PET Single Stage Stretch Water Bottle Plastic Blow Molding Machine is ideal for start-up and small-scale companies and is reliable, heavy duty, and capable of producing a wide variety of high quality P.E.T. bottles for many industries like water, alcohol, juice, liquid detergent, vegetable oil, cosmetics, pharmaceutical and personal care items which are just a few examples.
Features
| Minimize your initial investment by starting small. |
| Add additional systems economically as your business grows. |
| Bottles of different sizes can be produced simultaneously to meet your exact requirements. |
| Change over from one size to another can be completed simply and quickly. |
| The tooling costs (molds) are low since the design of the system is simple. |
| Systems can be dedicated to produce particular bottle sizes. A short operator-training period due to the simplicity of the design. |
| Maintenance costs are kept to a minimum and highly-trained personnel are not required |
How It Works
| 1. | The Blow Molding system does not require highly trained operators to produce consistent quality bottles. |
| 2. | The bottle making process starts by loading preforms into the preheater. |
| 3. | The preheater uses a variable speed track that moves the preforms through a heating tunnel. The heat tunnel has specially designed heating elements for a consistent heating operation with minimal maintenance. |
| 4. | When the preforms have made one "trip" through the preheater, they are manually loaded two(three or four) at a time into the blow molder. |
| 5. | After the bottles are formed in the blowing cycle, they are removed and the cycle continues. The finished bottles are then loaded directly onto a conveyor for filling or can be stored for later use. |
FAQ
| 1 | What is the terms of payment ? |
| We accept L/C ,40% dawn payment balance pay before shipment by T/T | |
| 2 | What is your delivery time? |
| Normally we will delivery the goods in 15-30 working days . | |
| 3 | Warranty time ? |
| One year. | |
| 4 | How you ship the machine? |
| We will send by sea,as the machine dimension is large we do not suggest you send by air ,but if you need urgently ,send by air we can also do it . | |
| 5 | Any easy broken parts free of charge,when we place order? |
| Yes . |
