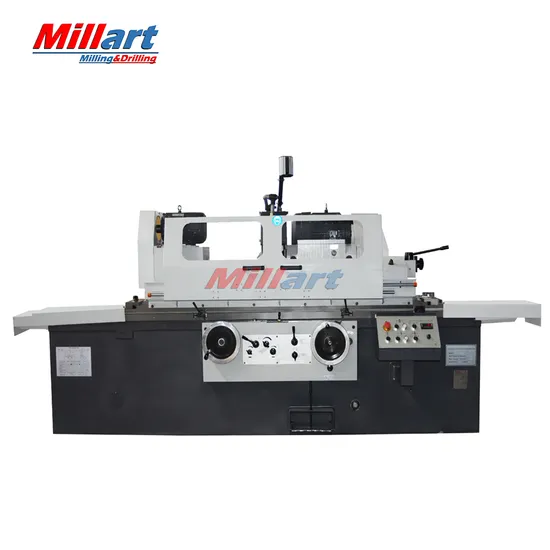

Cylindrical Grinder Machine for Sale M1332b
| US$12,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M1332B
Type
Tool Grinding Machine
Processing Object
Curve
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Center Height
180mm
Distance Between Top Center
1000mm
O.D Dia. Scope
8-320mm
O.D Max. Length Grind
1000mm
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8460291100
Production Capacity
50 PCS/Month
Product Description
Cylindrical Grinder Machine For Sale M1332BFeature:
Suitable for grinding IT6-IT5 accuracy cylindrical conical parts
Can choose hydraulic stepless or hand wheel transmission to achieve worktable longitudinal movement
Adopt orifice compensated unloading form on worktable lubrication
With hydraulic fast feed,manual micro feed and wheel automatic cycle feed function on worktable cross travel
Workpiece,External Grinding wheel,Oil pump,and Coolant pump are driven by independent motors
Adopt 2 sets of 4 bearing bushes compose the wheel spindle bearing.Increase the grinding carriage spindle diameter and motor power.Improve the grinding efficiency
Wheel dresser mounted on the tailstock,and tailstock equipped with hydraulic center back device
Adopt interlocking mechanism among electric,hydraulic and mechanical part,ensure safe operation.
Technical parameter:
| Model | Unit | M1332Bx1000 |
| O.D Dia Scope | mm | 8-320 |
| Distance Between Top Center | mm | 1000 |
| Center Height | mm | 180 |
| O.D Max Length Grind | mm | 1000 |
| Max.weight of workpiece | KG | 150 |
| Work head Center Taper(MT) | MT | MT5 |
| Work head Spindle Speed | r/min | 29-260 |
| Wheel Spindle Speed | r/mm | 1100 |
| Wheel Size(O.DxWxI.D) | mm | 600x75x305 |
| Peripheral Velocity | m/s | 35 |
| Hand Wheel Feed Per Revolution | mm | 6 |
| Max Swiveling Angle of Table | -3~+7° | |
| Longitudinal Speed of Table | m/min | 0.1~4 |
| Tailstock Center Taper | MT | MT4 |
| Quill Travel | mm | 30 |
| Wheel head Motor Power | KW | 11 |
| Work head Motor Power | KW | 0.75/1.5 |
| Machine Weight | KG | 4000 |
| Machine Size | cm | 360x180x150 |
| Working Accuracy | ||
| Roundness | μm | 1.5 |
| Uniformly of Inner Dia Longitudinal Section | μm | 8 |
| Surface Roughness | μm | Ra 0.6 |
| Surface Waviness | μm | 1 |
Standard accessories:
Standard grinding wheel
Coolant tank
Wheel dresser
Wheel flanges
Wheel balancing mandrel
Open type steady rest
Driving dog
Carbide tipped center
Support
Optional accessories:
Magnetic separator
Coolant tank with paper filter
Center rest close type
Radius dresser
Wheel balancing stand
