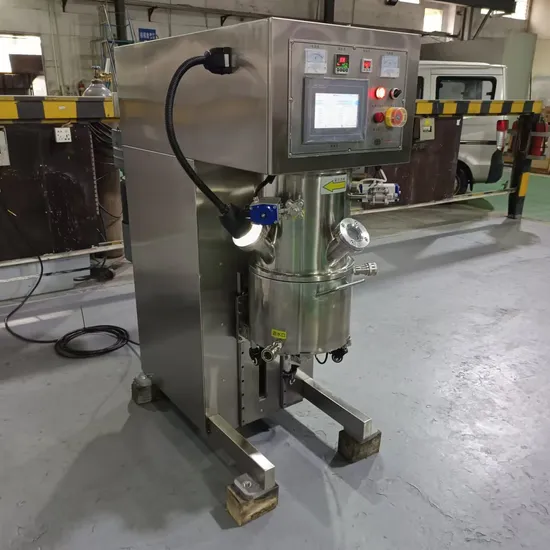

10L Mixer Laboratory Small-Scale Production of High Viscosity Vacuum Mixer for Lithium Battery Mixing
| US$5,200.00-6,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KR-GN-2L
Application
Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Pharmaceutical
Certification
CE, ISO
Condition
New
Control System
PLC Control
Cooling Method
Water Cooling
Heating Method
Hot Water Heating
Main Material
Alloy Steel, Stainless Steel
Safety Features
Emergency Stop Button, Overload Protection
Speed Control
Variable Speed
Stirring Type
Spiral
Temperature Control
With Cooling System
Working
Shear Mixer
Dispersion Speed
0-7000 Rpm Vvvf
Design Capacity
14L
Effective Usage Capacity
4-10 L
Mixing Motor Power
3kw
Dispersion Disc Rotation Power
3kw
Equipment Weight
Above 0.67 Ton
Equipment Failure Rate
2%
Temperatures Ranging
7 -80 Degree
Temperature Measurement Accuracy
2%
Applicable Powders
PVDF, CMC, Conductive Agent, Lithium Iron Phosphat
Applicable Solvents
NMP, Deionized Water, etc
Applicable Additives
SBR, Cnt, etc
Vacuum Holding Pressure
Vacuum Holding Pressure: Static 12h Vacuum Leakage
Not Applicable
Acetone Solvent
Customized
OEM & ODM
Transport Package
PP Bag + Card Board
Specification
1380mm x 620mm x 1420mm (vertical column)
Trademark
Career
Origin
China
HS Code
8479820090
Production Capacity
15000 Sets/Year
Product Description
Product DescriptionMain configuration
| No. | Item | configuration |
| 1 | Equipment appearance | stainless steel |
| 2 | Mixing motor | inverter-fed motor |
| 3 | Dispersing motor | inverter-fed motor |
| 4 | Control system | International brand |
| 5 | Rake construction | Vertical column type |
| 6 | MES system interface | Optional |
| 7 | Automatic constant temperature system | Optional (the customer should indicate the configuration) cold water hot water |
| Note: If there are special requirements or additional/reduced items (such as adding/reducing pipe openings), please provide additional explanations. The main switch power cord of the equipment inlet box and the hot and cold water pipes connected to the mixing tank interface can be prepared by the customer themselves. | ||
Working principle and relevant parameters
| Working principle | This equipment adopts intelligent control through a control panel or central control system, and can automatically operate according to the prepared mixing process flow; Equipped with two spiral mixing paddles and two sets of serrated dispersing discs, driven by a dual planetary structure, it can meet the efficient mixing of various powders and liquids. Through processes such as stirring and dispersion, the particle size, uniformity of particle distribution, and consistency of viscosity can be controlled; At the same time, the mixing bucket has the functions of quick replacement and vacuum sealing. By vacuuming, bubbles in the slurry can be eliminated; So as to meet the requirements of mixing and slurry forming processes. |
| Equipment composition | Vertical column structure, transmission part, sealed container, lifting system, control system, etc. |
| External size | 966mm x745mm x 1320mm (L x W x H(Vertical column type) |
| Design capacity | 10L |
| Effective usage capicity | 4-10L |
| Mixing paddle self rotation speed | 5-55 rpm inverter-fed motor |
| Mixing paddle revolution speed | 3-31 rpm |
| Disperse disk speed | 200-6000 rpm, Inverted-fed motor,Dispersion disk diameter Φ44mm |
| Mixing paddle revolution power | 0.75 KW |
| Disperse disk power | 3 KW |
| Lift motor | 3 KW |
| Weight | About 0.67 tons |
Equipment Capability
| Slurry production | Viscosity: 1,000 ~100,000 MPa.s, solid content is applicable to 30%~70%, and 85%~100% |
| Equipment failure rate | 2% |
| Equipment bearing temperature | 7ºC ~80ºC, the customer needs to provide the circulating cold and hot water |
| Temperature measurement accuracy | ± 2ºC, the customer to provide circulating cold and cold water |
| Effective load of mixing paddle | >=3Nm/cm² |
| Applicable powders | PVDF, CMC, conductive agent, lithium iron phosphate, lithium cobalt acid, ternary, graphite, etc |
| Applicable solvent | NMP, deionized water, etc |
| Applicable additives | SBR, CNT ,etc. |
| Vacuum pressure | Static 12H vacuum leakage rate is 20% |
| Not applicable: | Acetone solvent |
Other optional models
Detailed Photos
Structural Decomposition Diagram
Project case presentation
After Sales Service
FAQ If I place an order, what is the usual delivery time? -About 45-60 days How do you meet my needs.You need to tell us your production capacity, mixing materials, and the remaining requirements mentioned in particular. We will provide you with a solution based on your needs. At the same time, we will establish a dedicated production technology engineering communication and discussion group to ensure worry free throughout the process. Can you provide on-site installation and debugging services?
Yes, our company can send engineers to your local workshop to guide installation and commissioning, provide training, and accompany production.
