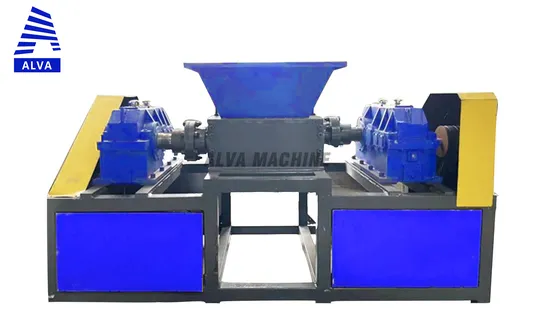

China Alva Scrap Car Crushing Line Automotive Engine Double-Shaft Shredder

Product Description

1.Product brief introduction
Shredder introduction:
All energy-saving shredders adopt microcomputer (PC) automatic control system, which is equipped with start, stop, reverse and overload automatic reverse control functions, and has the characteristics of low speed, high torque and low noise. The bearing seat adopts the split type, which is easy to disassemble and replace, and is suitable for shredding extra-large, extra-thick and difficult-to-shred materials. the
1. Various hollow containers: plastic beverage cans, plastic barrels, iron barrels, packing boxes, packing barrels
2. Waste home appliances: TV sets, washing machines, refrigerator casings
3. Pipes: large pipes, pipe fittings, PE pipes
4. Waste templates: wooden pallets, plastic pallets, forklift pallets
5. Waste tires: car tires, truck tires
6. Scrap metal: automobile casings, aluminum alloys, scrap aluminum castings, engine casings, lead, and steel plates with a thickness of less than 5mm
7. Kitchen waste, domestic waste, animal carcasses, RDF derivatives, medical waste, biological straw, garden waste
8. Rubber head material, paper mill twisted ropeShredder introduction:
Important instructions for shredders:
1. The thickness of the shredder knife is divided into 15mm, 20mm, 40mm, 50mm, 75mm, and 100mm. The knife body can be selected according to the particle size of the crushed object.
2. The shredder knife is a single-claw knife body. If you need a double-claw knife body or a multi-claw knife body, you can contact the sales department. the
Explanation: In recent years, with the widespread use of plastic bags, snakeskin bags, ton bags, fishing nets, tires, and film and plastic products, how to effectively recycle waste after use has become a problem to be solved by many manufacturers , Some manufacturers rely on purchasing expensive or high-power and low-efficiency equipment to recycle, the investment cost is too high, and some plastic products are directly incinerated, which affects the environment and is not conducive to sustainable economic development. How to economically and effectively recycle waste products has become a key research topic for various manufacturers. The emergence of the double-shaft shredder has effectively alleviated this problem.
Shredders are divided into double-shaft shredders and single-shaft shredders. The main function of double-shaft shredders is to cut bulk materials and large-diameter drum materials that are inconvenient to transport through the shearing of the shredder. Squeeze and shred into flake materials that meet the requirements. The large shredder not only improves the production capacity and crushing efficiency, but also expands the scope of application.

Model	ALVA-DSSM-600	ALVA-DSSM-800	ALVA-DSSM-1000	ALVA-DSSM-1200	ALVA-DSSM-1400	ALVA-DSSM-1600	ALVA-DSSM-1800
Blade diameter (mm)	Φ250	Φ300	Φ350	Φ400	Φ450	Φ500	Φ600
Blade thickness (mm)	30	40	40	50	70	80	100
Number of tools	40	40	50	48	40	40	36
Motor power (kw)	15kw*2	22kw*2	37kw*2	55kw*2	75kw*2	90kw*2	110kw*2
Speed (r/min)	15~18	15~18	12~15	12~15	9~12	8~10	5~8
Broken mouth size (mm)	600*480	800*650	1000*680	1200*780	1400*880	1600*980	1800*1180

working principle:
The double-shaft shredder adopts a geared motor directly connected to the worm gear, which is directly installed on the drive shaft of the shredder, and is transmitted to the drive shaft through the large and small gears, so that the helical toothed cutter head on the main drive shaft forms relative motion. The helical-toothed cutterheads on the main drive shaft are arranged in a staggered manner, so that the materials are squeezed, torn, and sheared at the same time after entering, so that the materials are broken.
Applications:
The shredder can be widely used in a variety of industries and materials. The shredder is divided into large, medium and small. The shredded materials include paint buckets, color steel tiles, cans, cans, milk powder cans, iron filings, bicycle frames, motorcycles, etc. Car frames, car shells, metal briquettes, woven bags, films, old clothes, quilts, wood, wooden boxes, circuit boards, steel wire ropes, refrigerators, air conditioners, washing machines, tires, rubber, etc. The shredder provides a strong technical impetus for the recycling and utilization of waste.
Product Features:
1. The multi-purpose shredder is widely used, convenient and fast, simple and easy to operate, strong shredding force, good shredding effect, and uniform output.
2. The multi-purpose shredder is easy to maintain. The hob of the shredder adopts an integral structure due to the limitation of the structural size. The hobs of the large, medium and small shredders all adopt an assembled structure, which can directly separate the damaged hob. replace.
3. The multi-purpose shredder has low speed, low noise and high torque, and is equipped with mechanical, hydraulic and electrical overload protection.
4. The multi-purpose shredder has low cost of use. The machine is reasonably designed and well-made, which prolongs the service life of the equipment and reduces the use and maintenance costs of the equipment. The machine is easy to operate, low energy consumption, low maintenance cost, economical and durable.
5. The blade of the multi-purpose shredder uses an intermeshing blade refined from high alloy, which has a good shredding effect on any high-hardness material. The machine is fully controlled by PLC, easy to operate, and can be automatically reversed to prevent material clogging.
6. The multi-purpose shredder is driven by a geared motor, which saves electricity consumption compared with other shredders.
7. The multi-purpose shredder has a strong structure and densely distributed stiffening plates to ensure the strength of the box.
