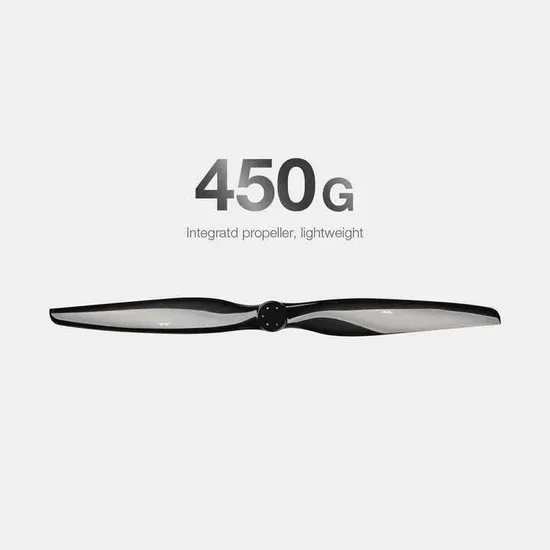

EV Craft 47inch Carbon Fiber Propeller Suitable for Brushless DC Motor 120100/154120/15470/23850

EV Craft 47inch Carbon Fiber Propeller Suitable for Brushless DC Motor 120100/154120/15470/23850

US$319.00
5-9 Pieces
US$310.00
10-49 Pieces
US$290.00
50-99 Pieces
US$260.00
100+ Pieces

Basic Info.

Model NO.
AH-47
Certification
CE
Material
Carbon Fiber
Seater
1
Type
Heavy Lift Drones
Transport Package
Carbon Box
Specification
47INCH
Trademark
EV Craft
Origin
China
HS Code
8503009090
Production Capacity
5000PCS/Month

Product Description

42 inch props large propeller generator for airplane brushless dc motor propellers
Product Description
Specifications
Diameter/Pitch 42*131.1inch (1068mm*332.7mm) Working Temp -40ºC~65ºC
Weigh(Single propeller) 290g Storage Temp -10ºC~50ºC
Material CF+Epoxy Storage Humidity <85%
Surface Treatment Glossy Optimum RPM 1000-2800 RPM/min
Propeller type 2blades-intergrated Thrust Limitation 85kg
Warning
(1)Please make sure that screws of cover plates and propellers are mounted properly
(2)Double check that propellers are flawless,otherwise,please replace them before flight
(3)Fall-off or equivalent impact to propellers will lead to defromation or cracks,in this case,you will need replace them
(4)NEVER add force onto the propellers or decompose the propellers,Any decomposition will result in safety issues
(5)For safety,please stay away from the spinning propellers,Special attention should be paid to when using propellers
(6)Please keep the propellers away from hostile environments containing corrosive gases,and maintain strict compliacce with storage temperature and humidity requirements,especially when it comes to long-time storage

The standard hole pattern: 6M5/12mm. The center hole is 12mm.

Testing report:

Motor: 154120 ESC: 120V 500A ESC Prop:4213
KV Voltage(v) Current(A) Thrust(kg) RMP Temp(degree)
33 112 12 10 1900 32.6
33 111 30 20 2600 36
33 111 40 25 2890 38
33 111 50 30 3100 39
33 111 63 35 3300 40
33 110 66 38 / /
33 117 70 39.6 3500 42
40 110 120 55 / 40
55 110 160 58 / /
55 111 230 77 / /
55 111 270 85

Motor 120100 50kv
ESC 120V 500A
Propeller 4213 2 blade propeller
Voltage (V) Amps(A) Thrust(kg) RPM
111v 52A 30.5 3100
111v 80A 42 3600
111v 102A 48 3800
111v 114A 50.9 3900
111v 120A 53.3 3970
111v 130A 55 4040
111v 140A 56 4070
Applications:
1.UAV Drone, Copter, FPV frame parts, Tools,model,medical devices,toys,telescopic tube;
2.Heli RC Racing Car Parts;
3.Medical X-ray machine Carbon Parts;
4.Mobile or Jewelry electronic Production Decoration;
5.Industrial mechanical parts sports priducts parts;
