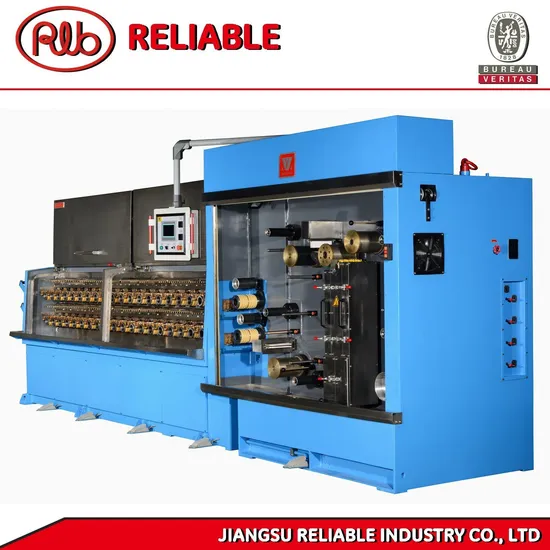

Multi-Head Wire Drawing Continuous Annealing Production Line

Product Description

Multi-head Wire Drawing Continuous Annealing Production Line
1. Description:
Use to continuously draw the ∅1.8mm copper wire to ∅ 0.15-0.5mm, and it can anneal online.
It can draw multi-head at the same time, and it has high production efficiency, and solve the site and personnel problems.
It adopts multiple sets of single or double layer drawing wheel with ceramic material. It has long service life, and is easy to replace and disassemble.
The unit adopts HMI+PLC control, centralized monitoring, display. The technological parameters can be read and stored, and the touch screen can be modified directly. It is convenient and efficient.
It equips with single or multiple take-up devices.
It can be selected with rolling mill, heat exchanger, vapor generator, copper powder filter and other auxiliary machine according to customer requirements.

2.Equipment Pictures
3.Technical specification

Type	No. Of Lines	Drawing Passes	Inlet Wire Diameter	Outlet Wire Diameter	Diameter of Drawing Wheel	Line Speed
RDB80	8-16	17/21/25	Max. Φ1.8	Φ0.15-Φ0.40	Φ80	Max. 1800
RDB100	20-24	21/25	Max. Φ2.0	Φ0.14-Φ0.40	Φ100	Max. 1800
RDB120	16	16/19/21	Max. Φ2.6	16 x (Φ0.20-Φ0.50) 8 x (Φ0.40-Φ1.05)	Φ120	Max. 1800

4.Layout:
5.Application Demonstration:
It can draw multi-head at the same time, and it has high production efficiency, and solve the site and personnel problems.
