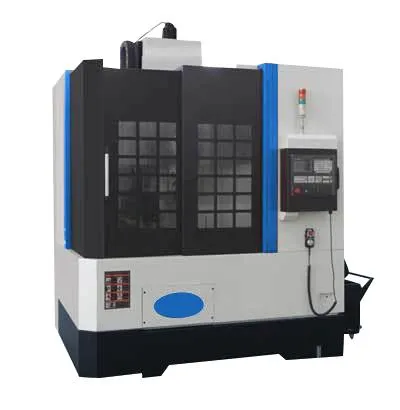

Vertical Slide Mini Lathe CNC Vertical Lathe Machine Price

Product Description

vertical slide mini lathe cnc vertical lathe machine price

Product Description
In order to meet the needs of the market, we independently developed the cnc vertical lathe machine. This series machine is suitable for machining parts in all industries,include wheel repair. On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.
This series machine is suitable for machining parts in all industries. On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.Since the workpiece is mounted on the horizontal worktable, it is more convenient to clamp the workpiece.
Product Parameters

Specification	UNIT	VTC70	VTC80
Max.Swing diameter	mm	700	800
Spindle speed	rpm	100~1000	100~800
Cutting feed speed	mm/min	0.1~1000	0.1~1000
Vertical moving distance of tool holder	mm	700	800
Tool rest horizontal moving distance	mm	700	550
Longitudinal fast moving speed	mm/min	16000	16000
Transverse fast moving speed	mm/min	16000	16000
Tool holder form		horizontal	horizontal
Diameter of hydraulic chuck	mm	400/500/630	400/500/630
Main motor power	Kw	22	22
positioning accuracy	mm	±0.008	±0.008
Re -positioning accuracy	mm	±0.004	±0.004
Machine size	mm	2050x1800x3200	2050x1800x3200

Application


CNC Vertical Lathe is suitable for internal and extemal turning,internal and extermal tapering,circula arc,facing,slotting,thread,drilling,reaming,boring,chamfering of big diameter axle parts and disc type parts. The machine has awidely use,high efficiency,good stability,easy to operate.It can achieve the high-precision processing of single or batch processing.

Packaging & Shipping


Packaging Details
1. Packing method: Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.
2. Mode of transport: by sea or by land.

Our Advantages


Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use

Company Profile

Certifications
Our company has passed the ISO quality management system certification,Products are exported to more than 50 countries and regions including Europe, America, Asia, Oceania and Africa.Has a number of product patents and honor certificates,is a continuous innovation machinery and equipment company.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
