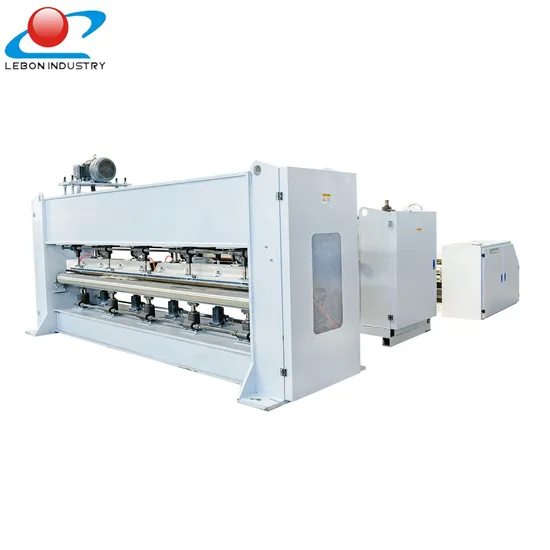

Nonwoven Geotextile Felt Needle Punching Loom Machine for High Way Road

Product Description

High Speed Needle Loom Machine 2200-8000mm 6.5 M
Function
The line is used to make nonwoven geotextile fabric materials from polyester fiber or PP staple fiber by needle punching machines.
Main specifications
Working width:2200-8000mm
Needle density: 5000-8000n/m*2boards
Needle stroke: 25-50mm
Needle frequency: 800-1200r/m
Needle type: double shafts, double boards, up/downstroke
Weight range of finished product: 100gsm~1200gsm
Production capacity: 500kg/h
Structure
Crank case complete with a vertical balance system
Central oil lubrication circulation and cooling system complete with pressure and temperature alarm systems
Magnesium alloy/PU combined needle board locked firmly by lock-bolt or air tube;multi random computer needling methods for needle board
Chrome plate delivery rollers with carved or patterned surface
Auto top dead center controlled stop
Applications:
Needle punching machine line technology process is the very common and prevailing process in the nonwoven industrial.
With diverse machine combination and designs, needle punch production line is applicable for producing various felt, carpet, geotextile, shoe lining, filtration material, substrate layer for synthetic leather and asphalt felt, and other hundreds of innovative nonwoven products.
Geotextiles Production Line can make all kinds of needle punching geotextiles or other needle punching products. This needle punching machine production line can have additions such as batt and/ or felt drafters. Needle looms of diffrent needle types and/ or densities can be used dependent on end use of product.
1. High capacity: up to 1000kg/h
2. This machine line can process 100% long length fiber up to 120mm
3. Enclosed chamer to maintain a negative pressure which can control the airflow properly.
4.Enclosed cover for proper protection and easy maintenance

Technical Parameter:

Machine width:	1500-8000mm
Needle density:	4000-7000s/m
Needle frequency:	100-700RPM for middle speed,1000-1500RPM for high speed
Needle stroke:	30-60mm
Capacity:	100kg/h-1000kg/h
Available raw material:	PP, PET, Polymide, fiberglass, Carbon fiber, Cotton, Jute, etc
