Automatic Waste Shredder for Plastic Bottles Caps Drums Papers Woven Bags Textile

Product Description

Product Description Product Introduction
The Double-Shaft Shredder is a widely used industrial shredder with low speed, high torque and high throughput, designed to efficiently process a wide range of materials. It can be equipped with different components or work with other stages of shredders depending on the material and final size, reducing the material to the required size.
The double-shaft shredder is a relatively extensive shredding machine, suitable for the preliminary processing of many materials. Based on the nature of the material and the required output, the power required can be initially estimated. Generally speaking,it is divided into single motor and dual motors.
Single motor is suitable for fragile materials with low power requirements. Dual motors are equipped with dual reducers, and ZSY or planetary reducers can be selected according to needs.
It is characterized by fast discharging and high efficiency, which can meet general crushing needs.
HLV has designed different ranges of double-shaft shredders for common applications with different components (reducers, blade sets, etc.) to guarantee a wide range of material adaptability. At the same time, we have the ability to custom-built machines to suit specific material and input/output requirements.

This article introduces the HLP series double shaft shredder.

Which Materials can be Processed?
--- Plastic Waste: Plastic bottles, plastic jugs, plastic buckets, plastic baskets etc.
--- Electronic Waste: Old hard disk, PCB boards, lithium battery,keyboards, mice, mobile phones, CDs, etc.
--- Metal Waste: Iron filings, cans, paint buckets, thin metal materials, etc.
--- Medical Waste: Syringe waste, pharmaceutical waste, small medical devices, latex material waste, discarded masks
--- Paper Products: cartons, cardboard, newspapers, books, documents, brochures, wrapping paper, etc.
---Kitchen Waste: Fruit and vegetable waste, kitchen waste, farmer's market waste, etc. . . . . . .
Discharge Effect
Product Highlights
1.Alloy steel DC53 moving blade. Each blade can be rotated and reused four times;
2.Moving blade V-shaped arrangement. Two edge blades on th both ends of rotating shaft to prevent material side accumulation;

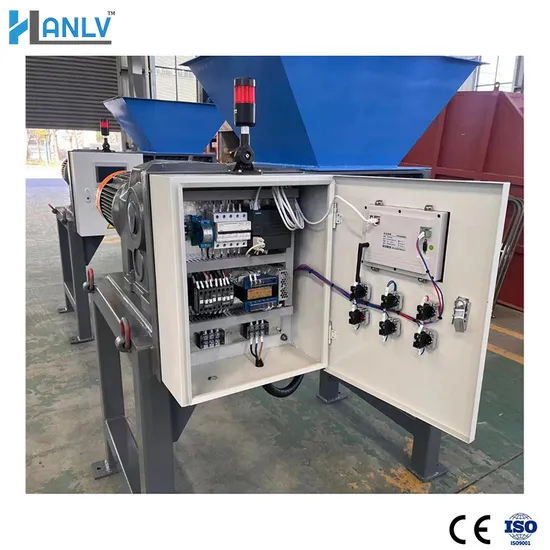

3. microcomputer (PLC) automatic control, set to start, stop, reverse and overload automatic reverse control.
4.Install shock absorbers to make them shred smoothly;
5. The device has a low speed, high torque, low noise, dust features can meet environmental standards.
6.Thickness and number of claw cutter knife can be replaced according to different materials.
Technical Data Technical Parameters

Item	Machine Name And Type	TECHNICAL DATA
1	HLP-450 Double shaft shredder	Model: HLP-450 Shredding Chamber (mm) :450x500 Blade Thickness: 9mm Blade Quantity: 50 Teeth Quantity: As many as possible Output size(mm): ≤20-30mm short strips Main power(kw): 15KW Reducer: Planetary
2	Belt Conveyor	Effective Width: 450mm Effective Length:1.8meters Motor Power: 1.5kw Belt Material: PVC belt 5mm Magnet Roll: At end of the conveyor

Item	Name	QTY	Detail/Origin/Brand	Remark
1	Feeding Hopper	1set	HANLV	Carbon Steel, 5mm
2	Shredding Chamber	1set	HANLV	450X500mm
3	Motor & Reducer	1set	GUOMAO	15KW
4	Coupling	1set	HANLV	45#
5	Shafts	2pcs	HANLV	42Cr
6	Moving Blades	50pcs	HANLV	300x9mm HARD ALLOY
7	Ring washers	50pcs	HANLV	9mm 45#
8	Gears	2pcs	HANLV	Ratio 1:1
9	Bearings	4pcs	NSK	IMPORTED
10	Down Hopper	1set	HANLV	Carbon Steel ,5mm
11	Electronic Control	1set	China Good Brand	CHNT
12	Support Frame	1set	HANLV	8X8cm, 6mm thickness Tubes
13	Oil Seal	4sets	/	Rubber
14	Control	1set	CHNT	380V/50HZ

Product Details

Packaging & Delivery
FAQ
Q:How long is your delivery time?
A:Generally, it will be about 35-40 days after deposit, which also will affected by the actual situation of the project.
Q:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
A: HANLV has people special for after-sale service,if customers outside China have problems when machine working,just feel free to send us the picture or video to show us,we will give you solutions in 24hours.
Q:Could We Visit Your Factory and Test the Machine?
A: We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
Customer Feedback
Company Profile
Hanlv is a new type of enterprise integrating R&D, manufacturing, sales and service of solid waste treatment equipment. In particular, it has extensive experience in metal recycling and plastic&wood &Tire crushing.
Hanlv has many years of experience in the solid waste recycling industry, and its equipment is sold in many countries around the world. Reliable equipment quality is our philosophy.
What do customers need?----This question has always kept us going.
Workshop View
Project Case
