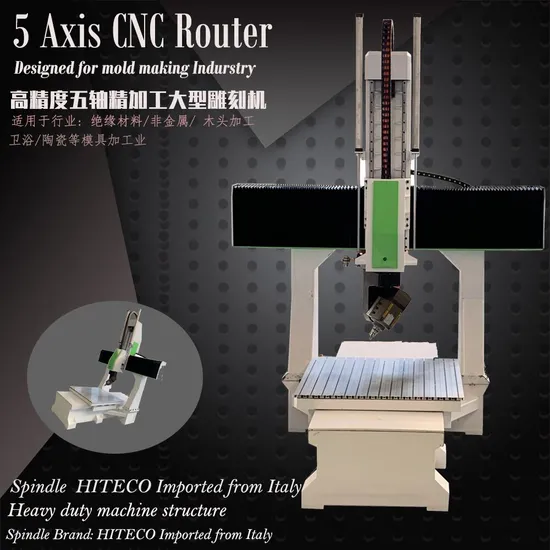

CNC Milling 5 Axis 1218 Wood Alumnium Engraving Cutting Machine CNC Router for acrylic MDF Hard Wood Metal Milling Carving 3D Stereoscopic Working Machine

Product Description

Application industries: 1.The Advertising nidustry: CNC router can engrave all kinds of signage, trademark, nameplates, badge, decorative gift, embossed medal, certificate, souvenir, photo frame, furniture decoration.

2.Small-scale woodworking industry: CNC router can be used for solid wood furniture, mahogany furniture, MDF paint door, solid wood door, composite door, cupboard door and window, bedside cabinet, folding screen etc.

3.Artwork industry CNC router can process wooden carft, mural art of wood, artwood, embossed, jeweery, cometics package, musical instrument.

4.Soft metal processing: CNC router can engrave electronic component, integrated circuit, electronic plastic case, electronic pproduct model, circuit board, electronic Light bix, computer and mobile phone keyboard, engraving a variety of electronic products.
Machine Parameters:
CK1812 axis with rotary parameter:
XYZ axis moving size :1800x1200x800mm Working table size : 1200x1200mm ( can be customerlized) Transmission structure: XY axis: TBI-SFY3232-C6 Standard Ground Ball Screws
Z axis: TBI-SFY3232-C6 Standard Ground Ball Screws Moving Rail: XZ axis: HGR32CA-HGW imported Square rail Y axis: HGR35A-HGW Imported square rail XYZ Motor Driver XYZ axis: Yaskawa Σ7s-1.3w absolute value servo motor ( Z axis band-type braking functions with Cylinder auxiliary device) A+C axis 5 axis Swing head: BES-LCC500 high precision swing head:
Motor: yaskawa-0.75KW absolute value servo motor Reducer: RV harmonic reducer imported From Japan Rated rotate speed: 90 ºC/sec
Running speed : 175 ºC/sec
Rated Torque: 300Nm
Max instantaneous Torque: 1000Nm
Max travelling : A axis= +_115ºC C axis +-225ºC Ball screw reverse clearance 20''
Repeated positioning accuracy: +-20'' Control system : SYNTEC MA610-E5-RTCP 5 axis and 5 axis ganged Control system ( included the RTCP funcation, M3- absolute value) Spindle Motor: Spindle Brand: HITECO Imported from Italy Spindle type: ELETM QX-2 10/12 24 63F NC Spindle power: 12.0KW
Cooling type: water cooling spindle Spindle frequency: 0-12000-24000 rpm Tool collector: HSK-F63 Inverter : Delta MS300-15KW inverter Carousel Liner Type: Type: Carousel with 8 pieces of tools
Machine photos:
samples:
Why choose our machine ?


As you know if the body of the machine is strong and directly determines the stability of the machine. Our body is made of 10mm thick welded square tube, which is punched and ground by pentahedron metal milling machine, avoiding the grinding and rubbing caused by some manufacturers to drill through the artificial electric drill, and strictly control the mechanical precision of the bed, and we Each bed must be subjected to 48-hour 500 °C high-temperature quenching aging treatment before the assembly of the guide rails, lead screws and side-plate gantry, to ensure that the stress in the bed is released to the minimum value, so that the installation and commissioning and long-term use of the machine after the machine In the middle, it avoids deformation and sinking of the bed, which directly affects whether the machine can be used normally.Therefore, whether it is the material used in the bed of the machine, or the amount of human resources we use and the technology we use to build the machine, that is the most and best.

Finally, I will explain last, this is also the most important point. The successful use of the machine is inseparable from the internal configuration of the machine, so all the configurations we use are the world's most famous and highest configuration. Even the ordinary accessories we all use the world famous accessories, all of which we import from other countries. High-quality configuration requires money to get it, and we also need to pay import fees to pay for high-quality accessories. And all our machines provide two years of after-sales service. During this period, there will be any problems in the machine. We will help customers solve the problem as quickly as possible.

Therefore, these also confirm what I said at the beginning, we can never buy high quality products at the lowest price, but we can buy high quality, high service products at the most suitable price!

2.How do we guarantee the security of our payment?

RE:Usually we have T/T, West Union, L/C, O/A and other payment methods, but if you are worried about the security after payment, then you can choose made in China to pay, A safe and big platform, you pay made in China when your products send to you , and during the shipping , made in China will pay us .

3.This is the first time to use cnc router machine,is it easy to operate?

Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1.English guide video and instruction book are sent to you free together with the cnc router.
2.Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.
3.We have our own after-sales service team,24 hours technical support by calling, video and email.
