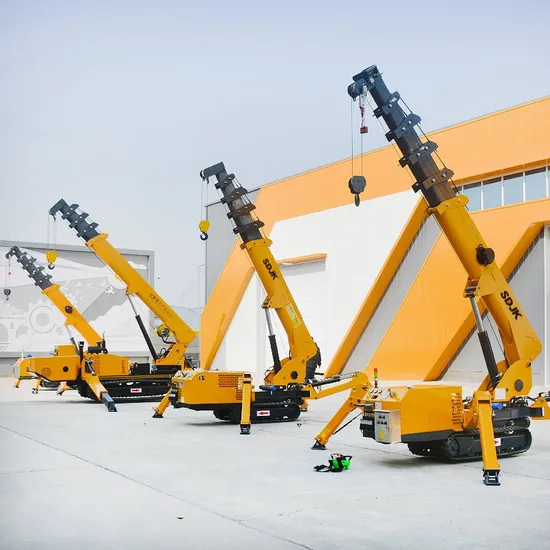

Folding Construction CE/EPA Spider Crane 1.2/3/5/8ton Rubber Crawler Cantilever Electric Crane Hydraulic Telescopic Boom Diesel Crane

Product Description

Welcome to SDJK Machinery Manufacturer
We specialize in the production of crawler cranes, spider cranes of various models and tonnages for you to choose, we provide OEM/ODM services
Welcome to consult us Spider crane generally refers to lifting equipment with a lifting capacity of less than 8 t and is easy to transport and use. It has the advantages of general flexibility and can be folded. Such as the installation of indoor glass, the hoisting of indoor wall panels, or the transportation of various small-quality goods up and down floors. To a certain extent, spider cranes can make up for the application limitations of crane machinery, so for indoor work, spider cranes are becoming more and more popular.
Where are spider cranes used? alternative title: Hydraulic Telescopic Boom Diesel Crane
1. glass engineering
Glass can be installed even under the roof by using the vacuum glass suction cups mounted on the search hook. The spider crane was born to complete the work of glass installation more efficiently. Mini spider cranes are also widely used in indoor, narrow spaces and narrow passages.
2. Curtain wall installation
The spider crane is small in size and convenient in transportation. It is widely used in the process of curtain wall construction. It can be used for vertical transportation, hoisting, etc. The lifting capacity is generally 2~3 tons, which can meet most of the hoisting requirements of the construction site. In addition, the spider crane is also particularly suitable for the installation of unit panels with large changes in the façade.
3. Working in narrow spaces
Even in tight spaces, the spider crane can make a big difference with its four support legs. By making full use of the effective working radius, it is possible to work in confined spaces avoiding obstacles (such as power lines), and also to achieve safe lifting work, which is best for working in tight locations where larger cranes cannot access.zmwm14
4. roof work
Spider cranes can be placed on roofs and lift materials from the ground. Shorter construction periods and cost reductions can be achieved. Spider cranes can be easily lifted to the roof by a tower crane or elevator.
5. Steel structure and building construction
Spider cranes are suitable for steel structure installation works in various buildings and roofs, as well as steel tower installation works.
Crane is a kind of machine widely used in ports, workshop, electrical and constructional site. The crane is a general name of hoisting machine. Frequently called crane is auto crane, crawler crane and trye crane. Crane is used in hoisting equipment,emergency rescue, lifting, machinery, the rescue. Product Parameters

Model		JKZ30
Specification		3t
Maximum Working Radius		8.83m×0.15t
Maximum above-ground head		9.9m×0.7t
Maximum underground head		10m×1t(4rope) 20m×1t(2rope) 40m×0.74t(1rope)
Winch Device	Hook Speed	0-8m/min(4 rope)
	Rope diameter	φ8×45m
Telescopic system	Boom Type	5 section boom, Pentagonal structure, two sections can be extended independently
	Boom Length/Time	3.1m-9.9m/20sec
Up and down	Boom Angle/Time	0°~75°/13sec
Slew system	Slew Angle/Speed	0-360°continuous/60sec
Outrigger	Outrigger Active Form	Manual spin out + oil pressure automatic support (two section outrigger)
	Maximum Extended Dimensions	4530×4370×3700mm
Traction system	Walking Way	Hydraulic motor drives,two speed
	Walking Speed	0~2.5km/h
	Traction device	Synthetic rubber
	Grade Ability	(20°)36%
Motor	Voltage	AC 380V
Engine	Manufacturer	UPOO
	Type/discharge	2V 80/F195
	Starting Method	Electric starting
	Starting performance	-5°C~40°C
	Fuel/volume	Diesel/8L
	Battery capacity	12V 45AH
	Fuel consumption rate	274g/KW-h
	Noise grade	rated speed<81.5dBA(1m)
	Emission standard	National-2 standard
Operating system	Operation type (Boom/outrigger)	Manual operation, manual walking
	Operating characteristics	Manual operation,remote control
Transport parameters	L×W×H	2950×980×1560(mm)
	Total weight	2500kg

Model		JKZ50
Specification		5t
Maximum Working Radius		14m×0.5t
Maximum Ground Lifting Height		16.8m
Maximum Under Ground Lifting Height		18.5m
Winch Device	Hook Speed	12m/min (4 ropes)
	Rope diameter	Φ11mm×80m
Telescopic system	Boom Type	5 section boom, hexagonal structure, two sections can be extended independently
	Length of telescopic boom	4.7-16.5m
	Boom Length/Time	12.3m/54sec
Up and Downs	Boom Angle/Time	0~75°/13sec
Slew System	Slew Angle/Time	360° continuous/38 sec
Outrigger	Outrigger Active Form	Manual spin out + oil pressure automatic support (two section outrigger)
	Maximum Extended Dimensions	7800mm x 3600mm
Traction system	Walking Way	Hydraulic motor to drive
	Walking Speed	0-2.5km/h
	Traction device	Track synthetic rubber
	Grade Ability	20° (36%)
Engine	Manufacturer	YUNNEI
	Type/discharge	490
	Starting Method	Electric starting
	Starting performance	-5°C~40°C
	Fuel/volume	Diesel/8L
	Battery capacity	12V 45AH
	Discharge
Operating system	Operation type (Boom/outrigger)	Manual operation, manual walking
	Operating characteristics	Manual operation,remote control
Dimension	Length x Width x Height	4750×1500×2200(mm)
Weight	Vehicle Weight	6500kg
Effective lifting height	16.5m

Specification
Maximum operating radius
Maximum ground lift
Maximum underground lift
Hoisting device	Lifting speed of hook
	Wire rope specifications
Telescopic device	Telescopic boom form
	Telescopic boom length
	Boom length/time
Heave device	Boom angle/time
Swivel device	Rotation angle/speed
Outrigger	Outrigger action form
	Maximum extension (mm)
Walking device	Way of walking
	Walking speed
	Gradeability
Engine	Producer
	Type/displacement
	Start method
	Startup performance
	Fuel/volume
	battery capacity
Operating system	Operation type (boom/outrigger), manual walking
	Operating characteristics
Machine size	5000*1600*2200mm
Machine weight	7000kg

Advantages of our spider crane
1.Synthetic rubber tracks
Flexible,capable of walking on a falt and solid ground,with a wide range of trials.
2.Hydraulic outrigger
The outrigger occupies a small space when working,can be combined freely,and the angle can be adjusted.
3.Moment limiter
safe load indication,it can display working state,loading weight,boom length,angle and automatic alarm when exceed rated capacity.
4.Remote control
control crane with distance,ensure operator's safety under bad environment
