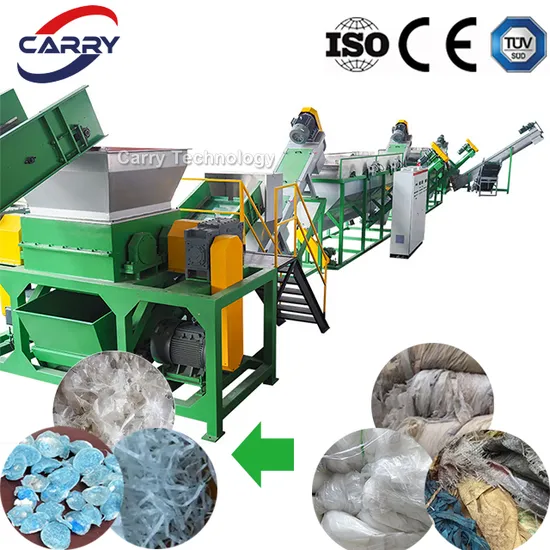

Carry Hot Sale 1000 Kg/H PE Waste Film PP Woven Bag Recycling Crushing Plastic Washing Machine

Product Description

Product Description
Machine Introduction Plastic pp pe recycling machine washing line is widely used for recycling PE PP bag, woven bag, non-woven bag, HDPE milk bottle, oil barrel, Oil tank, basket, agricultural film etc. Our company can provide a wide range of standard and customized recycling systems to meet the different requirements of a modern recycling environment. The systems are capable of processing a wide range of plastic materials with varying levels of contamination including extremely heavy contamination such as oil based substances and agricultural waste. The output material can be applied for granulation, blow molding and injection. The whole production line is easy to operate, efficient and low energy consumption. There are 300-2000kg/h capacity , we need your detailed requirements to make quotations according. A typical pp pe washing plant is consist of the following components: • Belt conveyor: For waste material infeeding. • Metal Detector - detects metal contamination that may remain in the bottles • Crusher: Wet crushing system.It used for material size reduction and pre-washing by water spraying from the top. • Screw conveyor : For PP PE flakes transportion • High speed Friction washer: High speed friction washing could achieve a good cleaning effects through the blades on the beating and rub.
• Hot Washing Tank/ steam washer - hot washing process with alkaline (caustic) soda to remove glue and oil. • washing tank/ float washer: For flakes floating washing and conveying. • Horizontal dewatering machine( Dehydrator):This machine is mainly used for the drying of the pp pe flakes , it throw the water out from the screen by high speed rotating ,and the plastic get out of the machine enters into the next procedure from the outlet .The machine has a good drying effect and high energy efficiency. The paddle is made of high wear-resistant materials, can be replaced more conveniently.
• Hot air dryer-this machine will dry the pet flakes further by hot air. • Blower and transition silo: transportation to storage silo. • Control cabinet: For control the whole system intensively.Output capacity : 300kg/h, 500kg/h, 1000kg/h, 1500kg/h, 2000kg/h
Product Specification

Capacity	Ancillary staff	Installation power	Water Consumption	Workshop(M*M*M)
300kg/h	3Persons	120KW	3Ton/h	23 (L)×5(W)×6(H)
500kg/h	3Persons	185KW	5Ton/h	25 (L)×5(W)×6(H)
1000kg/h	4Persons	270KW	6Ton/h	30 (L)×6(W)×6(H)
2000kg/h	5Persons	380KW	10Ton/h	40 (L)×6(W)×6(H)

Plastic recycling machine/ Waste PP PE film bags washing line
Features:
1. Main material contact with water adopt stainless steel 304.
2. Complete solution for washing line. installation,water circulation and operation training.
3. Capacity is optional from 300kg per hour to 5000kg per hour.
4. Negotiable washing process to help client get the most suitable washing line.

Heavy duty wet crusher machine
Suitable for soft and hard PP/PE plastic waste film bottles
Crushing with water
Screw type friction loader
This machine is used to load the crushed plastic scraps and friction with water spraying to wash away the dirty
Floating washing tank
This machine is mainly used to clean the dirty on the surface of PP PE scraps
Squeezing compactor machine
This machine mainly used to dewater for film scraps and cutting by die face for further process
Final product water content less than 3%
Horizontal dewatering machine
Dewatering process
Final product water content less than 8%
Pipe line dryer
Hot air strong fan blowing and drying the plastic scraps.
Final product water content less than 5%
Detailed Photos

Our machine main motor is Siemens brand, inverter ABB, temperature controller Omron, all international famous brand components:
Related Machines
You may also like, click for more details

Company Profile
Certifications
Customer Cases
Welcome to visit my factory to check machine
1.5 hours driving time from Shanghai to my city
Packaging & Shipping

FAQ
Q: What about the payment terms?
----Always 30% down payment as deposit,70% balance payment after inspection before shipping.
Q: What is your guarantee time?
----Our guarantee time is 12 months.
Q: If you will send engineer coming to our factory to install and test the machines?
----Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q: If you have CE,SGS,ISO certificate?
----Yes,except these,if you also need other certificates,we also can help to apply.
Q: If we buy your machines, can you offer us wear-out spare pats?
----Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q: What is the machine voltage?
----380V 50hz 3 phase or any other voltage according to client's requirement.
