10kw AC220V 100rpm-360rpm Low Rated Speed Permanent Magnet Generator

Product Description

10kw AC-220v/380V 100rpm/200rpm/250rpm/270rpm/300rpm/330rpm/360rpm Three-Phase Output Low rpm Permanent Magnet Generator
Aluminium alloy shell
Low start-up torque
Direct drive
CE certified

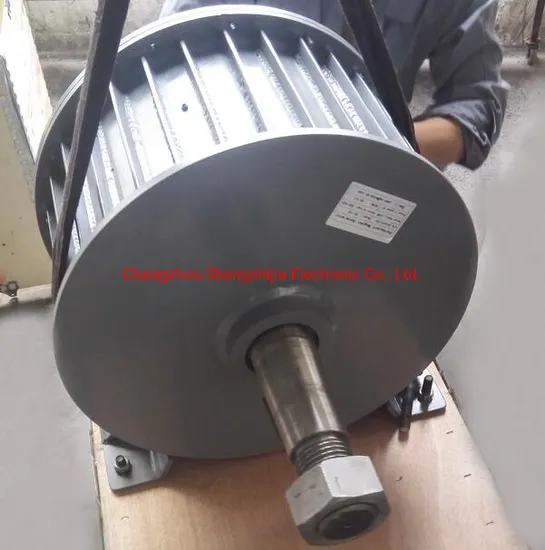

Real Picture:
10KW generator permanent magnet Features:
1, Gearless, direct drive, low RPM generator
2. Small size and light weight: Its size and weight are 30% less than those of conventional generators.
3, Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
4, permanent magnet generator rotor using patented alternator, together with the special stator design
Please kindly be noted there are 2 kinds of alternator, one is one shaft ones, that is shaft out one side only and another is doubleshaft ones whose shaft out two sides, please contact with us for detailed information. Thank you!
Features: 1. NdFeB, rare earth permanent magnet generator2. low start-up torque3. small size, beautiful appearance, low vibration4. easy installation, maintenance and repair.5. permanent magnet generator rotor using patented alternator, together with the special stator design, effectively reduce the generation of resistance torque
Specification:

Model	SHJ-NEG10K
Rated Power(w)	10Kw
Max Power(w)	13Kw
Rated Voltage(v)	110V/120v/220v/380V
Rated rotated speed(r/m)	200r/m
Top net weight(kg)	165kg
Output Current	AC
Start Torque(<N*M)	7.5 Nm
Rated Torque(N*M):	477.5Nm
generator	3 phase permanent magnet synchronous generator
Insulation Class:	F
Service Life:	More Than 20 years
Bearing	HRB or for your order
Shaft Material	stainless steel
Shell Material	carbon steel
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working temperature	-40 to 80

Production Process:
Package:
