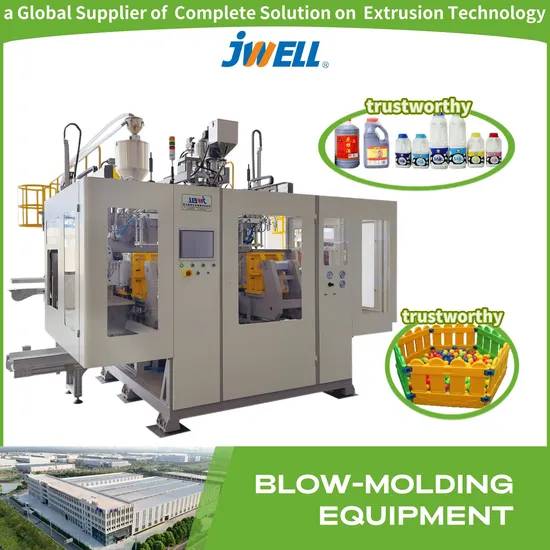

Jwell-Bm Equipment for The Production of HDPE Bottles Automatic 2-Cavity Bottle Highspeed Plastic Blowing Molding Machine Blow Molding Machine

Product Description

Product Description
BM 05D 12D 20D Double Station blow molding machine ·Suitable for producing 1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank etc.
·Optional multi-layer co-extrusion.
·According to the product size,select different cavity of die head.
·According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
·According to customer's requirement,optional auto-deflashing on line,scrap conveying on line,finished product conveying on line.
Single screw extruder |parison controller |blowing pin device |Accumulate type die head|Mold open and close device |Take out robot|Hydraulic systm|Pneumatic system|Electrical system.
Control system:SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.The electrical controlling system uses human-machine interface, all the parameters can be defined on touch screen, for example, the rotating speed, temperature setting, working pressure of hydraulic system and so on. It also has alarming function and emergency-stopping function.
B&R Austria human-machine interface and parison programmer,can adjust within 300 points.
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Extrution & Die head
The extruder uses screw and barrel, which is a famous brandJwell HDPE Plastic Road Pyramid and Insulation Barrels Making Blow Molding Machine/Blow Moulding Machine/Made in China all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
Take out robot
Scrapping collect together, convey,crusher into one unit
Hydrulic system
Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
Product photos
Performance and advantages
Suitable for producing 1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank etc.
.Optional multi-layer co-extrusion.
.Optional view strip line system.
·According to the product size,select different cavity of die head·
·According to the different material,optional JW-DB single stationhydraulic screen-exchanger system.
·According to customer's requirement, optional auto-deflashingon-line, scrap conveying on line, finished product leak testing online,conveying,packing,etc.,reducing the working cost andincreasing the production ratio. Technical parameters

Technical parameters
Model	Unit	BMO5D	BM12D	BM20D
Max product volume	L	5	12	20
Dry cycle	Pc/h	700*2	600*2	600*2
Die head structure	Continuous type
Main screw diameter	mm	75	90	90
Max plasticizing capacity (PE)	kg/h	90	160	160
Driving motor	Kw	30	45	45
Oil pump motor power(Servo)	Kw	15	18.5	18.5
Clamping force	KN	70	120	160
Mode moving control	Servo motor control(Optional)
Space between platen	mm	150-510	240-460	280-680
Platen size W*H	mm	420*390	520*490	500*520
Max.mould size	mm	420*400	540*500	560*520
Platen moving stroke	mm	450/520	600/650	650
Heating power of die head	Kw	7.5	10	12.5
Machine dimension L*W*H	m	3.7*3.1*2.7	4.2*3.2*3.0	4.3*3.2*3.1
Machine weight	T	8.5	12	14
Total power	Kw	60	90	93
Note: nformations isted above are for reterence onlv, the production ine can be desianed ov customer's reauirements.
