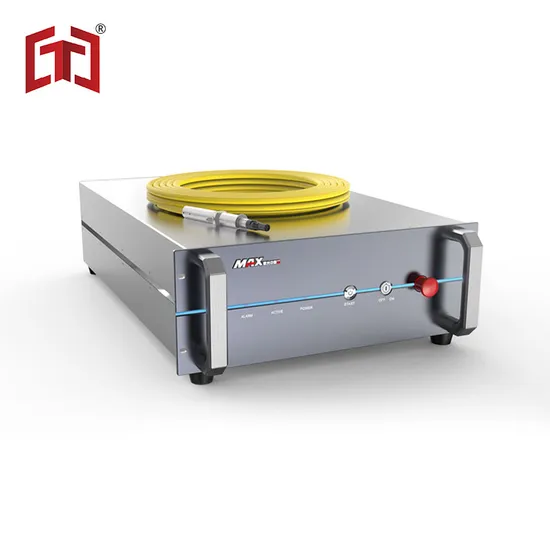

Max Fiber Laser Source Single Mode 1500W Cutting for Laser Cutting Machine
Basic Info.
Model NO.
MFSC-1500X-BJW
Customized
Non-Customized
Standard Component
Standard Component
Type
Laser Source
Weight
60kg
Operation Mode
Cw/Modulated
Polarization
Random
Output Power
1500W
Output Form
Standard Qbh
Feeding Fiber Core Size
50 Um
Transport Package
Carton
Specification
482.6x800x193mm
Trademark
MAX
Origin
China
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
89.00cm * 65.00cm * 38.00cm
Package Gross Weight
43.000kg
Product Description
Product DescriptionMFSC 1000X-1500X Single Module CW Fiber Laser, based on modular design,has excellent beam quality and high stability, which structure is compact and water-cooling. The laser can be adjusted continuously, and the beam is transmitted be fiber and QBH connector, which is ideal for laser cutting, laser welding, etc . The laser is very suitable for system intergration with robot or machine tool, and is widely used for laser cutting, welding, 3D printing, electronics, automobile parts,aerospace, etc.
Product Feature
Product Parameters
| Models | MFSC-1000X | MFSC-1500X | |
| OPTICAL SPECIFICATIONS | |||
| Nominal Power | 1000W | 1500W | |
| Mode of Operation | CW/Modulated | ||
| Polarization | Random | ||
| Power Tunability | 10 to 100% | ||
| Wavelength | 1080 ± 10 nm | ||
| Power Stability | ±1 % | ||
| Laser Beam Quality, BPP | ≤1.5 mm x mrad (50μm QBH) | ||
| Modulation Frequency | ≤20 kHz | ||
| Preview Red Light Power | 150 μW | ||
| FIBER DELIVERY SYSTEM | |||
| Interface | QBH (LOC) | ||
| Length | 15m standard, other lengths optional | ||
| Diameter | 50 (25) μm | 50 (35) μm | |
| Bending Radius | 200 mm | ||
| ELECTRICAL RATINGS | |||
| Supply Voltage | 220VAC (-15% to +10%) Single-phase | ||
| OTHER SPECIFICATIONS | |||
| Operating Temperature | +10 to +40ºC | ||
| Storage Temperature | -10 to +60ºC | ||
| Humidity | 10 to 85% | ||
| Cooling Method | Water Cooling | ||
| Cooling Medium | Distilled water/ Glycol Antifreeze | ||
| Dimension | 482.6×800×193mm (W×D×H) | ||
| Weight | 53(±3) kg | 57(±3) kg | |
