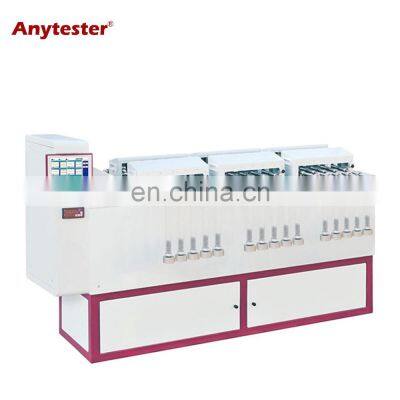

ASTM D5397 Notched Constant Tensile Load (NCTL) Tester

Product Description

Product Description
Product DescriptionAT415 Notched Constant Tensile Load Tester is used to evaluate the stress crack resistance of notched plastic sheet under constant tensile load. SPECIFICATIONS FOR AT415 Notched Constant Tensile Load TesterNo. of test unit 6 or customizeWorking position 5pcs per test unitLoad range 200~1370gTube weight196±3gTube bearing weight600gTiming range 1s~9999h59min59sTiming accuracy 1sTiming deviation1minVolume of bath125LTemperature control range RT~80℃Display resolution0.1℃Temperature accuracy ±0.5℃Clamp axis diameter Φ6Operation temperature 10~35℃Heating power3.0kwPower supply Single phase, (187~242) VAC, 50Hz, 4.5kwDimensions 1900×500×1400mm (L×W×H)Weight 180kgMain Features1) Simple structure in linear type ,easy in installation and maintation. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) High pressure double crank to control the die opening and closing. 4) Running in a high automatization and intellectualization,no pollution 5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine . StandardASTM D5397Detailed ImagesTest Many Samples Each Time1.6 test units can work separately2. 5 working positions per test unit3.test 30 specimens at the same time, high efficiency High quality material> High quality stainless steel make the machine long life> Good machinery technology perform nice appearanceCertificationsOur ServicePre-Sales Service* Inquiry and consulting support. * Sample testing support. * View our Factory.After-Sales Service* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.Packing & DeliveryPackagingSize(cm)85 (L) * 51 (W) * 94 (D) Weight60KgPacking Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.
