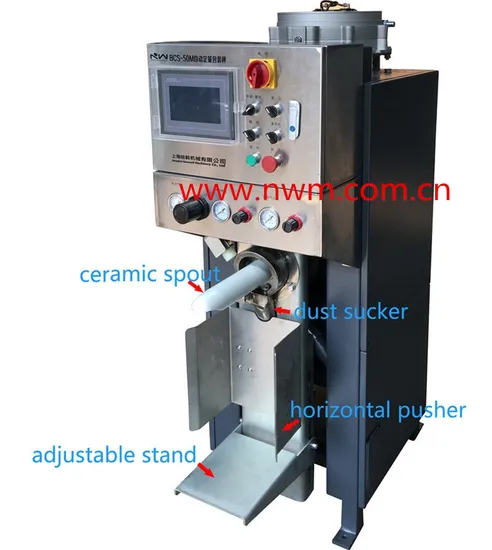

10-50kg Dry Mortar Bagging Machine with Valve Bag
| US$6,700.00-7,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
BCS-50
Type
Filling and Sealing Machine
Forming Species
Bag Moulding
Forming Function
Filling
Driven Type
Electric
Material Type
Powder
Packaging
Cartons
Packaging Material
Composite Materials
Automation
Automatic
Condition
New
Processing
Dose, Filling
Product
Flour, Chemical Powder
Usage
Dry Mortar Packing
Capacity
300-360bags/Hour
Packing Range
5-50kg
Feeding Type
Low Pressure Air
Transport Package
Woodbox
Specification
CE
Trademark
NW
Origin
Jiangsu
HS Code
8422303090
Production Capacity
200PCS/Year
Product Description
Valve bag packerBCS-50M automatic dosing valve bag packer is a new generation packer. It has four patents: low air pressure pulse conveying, super wearable airfloating device, automatic adjust double stroke gate valve, ceramic spout.
The packer is suitable for packing different type of raw materials. Such as industrial micro-powder, powdery pigment, powdery chemical, flour and food additive, all types of dry mortar and others.
Technical parameter:
Capacity: 5-7 bags/min( note: different material, the packing speed is different)
Precision level: ±1%
packing range: 5-60kg
Material inlet size: Φ300mm
Ceramic spout size: Φ63mm
Valve bag mouth size: ≥Φ70mm
Max. Aggregate granular size: 5mm
Working ambient: 0-40ºC, humidity≤90%RH, no dew
working power: AC220V/50HZ
Voltage fluctuation range: -15%~+10%
Frequency fluctuation range: ±2%
working air source: pressure≥0.5Mpa, air consumption is 0.2m3/min
Dust collection air volume:≥2000m3/h
Standard outline dimension: LXWXH=1000mmX550mmX1500mm
The brand of main part:
Air cylinder:Airtac
Magnetic valve:Airtac
Electric component:Schneider
Control unit:Toledo
Touch panel:Kunlun tongtai(China)
Pneumatic butterfly:WAM, Italy
Electric control box:SUS304
Surface treatment: Whole machine is Electrostatic spray, mobile part is galvanized
