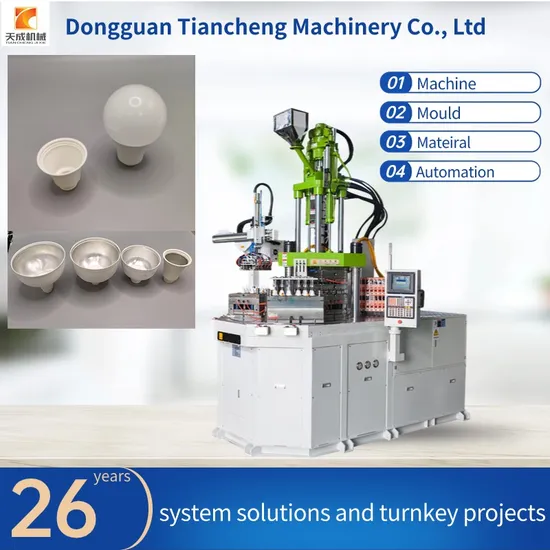

Bulbs Plastic Holder Making Machinery Plastic-Machinery Plastic Injection Moulding Machine
| US$45,000.00-60,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
TC-2200-2R
Type
Tube Head Injection
Structure
Vertical
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Screw Diameter (mm)
40--42
Maximum Injection Pressure (Kg/Cm2)
2268--1835
Clamping Force (Ton)
160
Opening Force (Ton)
13
Opening Stroke (mm)
300
Total Capacitance (Kw)
13.8
Machine Specification(M)
2.9*2.35*3.6
Weight of Machine (Kg)
8500
Transport Package
Plywood Case Pcking
Specification
160T/220T
Trademark
TianCheng
Origin
Dongguan Guangdong
HS Code
8477101090
Production Capacity
20000 Sets/Year
Packaging & Delivery
Package Size
290.00cm * 235.00cm * 360.00cm
Package Gross Weight
8500.000kg
Product Description
Welcome to Dongguan Tiancheng Machinery Co., Ltd160T/220T/Fully Automatic Injection Molding Machine for LED Lamp Cup Introducing the 160T/220T fully automatic injection molding machine for LED lamp cups by Dongguan Tiancheng Machinery Co., Ltd. This tube head injection machine offers online after-sales service, a 1-year warranty, and is designed specifically for LED lamp cup production.
Product Description
Detailed Photos
Product Parameters
| Brand Name | Tiancheng | Style | VERTICAL | |
| Condition | New | Model NO. | TC-1600-3R | |
| Screw Diameter (MM) | 40--42 | Max.Hydraulic Pressure(Kg/cm3) | 140 | |
| Maximum injection Pressure (Kg/cm2) | 2268--1835 | Pump Output (L/min) | 68 | |
| Theoretical Shot Volume (Cm3) | 226--254 | Oil Tank Capacity (L) | 600 | |
| Maximum Shot Weight (G/oz) | 202/7.2--226/8.0 | Cooling Water Consumption(L/H) | 800-1000 | |
| Injection Rate (Cm3/sec) | 220-260 | Electric Power (KW) | 22 | |
| Screw Speed (R/Min) | 0--240 | Total capacitance (KW) | 13.8 | |
| Screw Rate (MM) | 220 | Total Wattage (KW) | / | |
| Nozzle Retraction Stroke (MM) | 330 | Machine Specification(M) | 2.9*2.35*3.6 | |
| Clamping Force (Ton) | 160 | Weight of Machine (KG) | 8500 | |
| Opening Force (Ton) | 13 | Plastic Processed | PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP | |
| Platen Size (MM) | 1384 | After-sales Service Provided | Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support | |
| Distance Between Tie-Bere (MM) | / | After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service | |
| minimum Mold Thickness (MM) | 300/400 | Warranty | 1 year | |
| Opening Stroke (MM) | 300 | Applicable Industries | Manufacturing Plant, Construction works , Energy & Mining, Other | |
| Max-Distance opening mold (MM) | 600/700 | |||
| Max.Mold Size | 550*500 | |||
| Ejector Force (Ton) | 4.6 | |||
| Ejector Stoke (MM) | / |
Packaging & Shipping
After Sales Service
FAQ
| Q1: Are you a trading company or a manufacturer? |
| A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
| Q2: What's your warranty for the machine? |
| A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
| Q3: What's your Delivery Time? |
| A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
| Q4: Why choose TianCheng Machinery Co., Ltd.? |
| A4: "Tiancheng Machinery, we sincere, you succeed!" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
