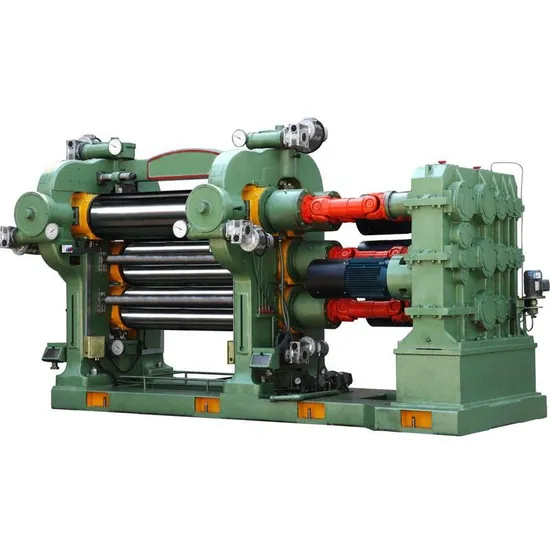

Low Noisy Four Roller Natural Rubber Leather Calender Machine

Product Description

low noisy four roller natural rubber leather calender machine
Description of this rubber calender:
Application:
Rubberizing and fractioning of textile material, rubberizing of wirecord fabric, sheet, and counter plate(embossed) of rubber material, separation of fabric and film, as well as joint of multi-layer laminate film.
General design:
It mainly contains roller, rack, backplane, adjustment, device, transmission system, roller temperature control device, security device, lubricating device, etc.
Features:
1. The roller is made of chilled cast iron alloys, whose work surface has high hardness, wear-resistent and durable life. Steam, cooling water, and heat-conducting oil can pass into the rollers cavity, so that the working temperature can be adjusted in order to meet the technical requirements.
2. Roll spacing can be adjusted both by manual or electric mode.
3. Roller bearings lubricating can adopt drier oil or dilute oil.
Main Parameter

Parameter/Type	XY-4I 630 XY-4L 630 XY-4F 630	XY-4F1120	XY-4F1400	XY -4F1500	XY-4F1730	XY-4F2130	XY-4F2430
Roll Diameter(mm)	230	360	400	450	610	710	810
Roll Working Length(mm)	630	1120	1400	1500	1730	2130	2430
Roll Ratio	1:1:1:1	0.73:1:1:0.73	1:1.383:1.383:1	1:1.5:1.5:1	1:1.4:1.4:1 1:1.4:1.4:1.4	1:1.5:1.5:1	1:1.5:1.5:1
Middle Roll Speed(r/min)	2.1-21	2-20.1	3-26.3	2.5-25	8-50	8-50	2-20
Adjusting Nip Range(mm)	0-10	0-10	0-10	0-10	20	0-20	0.5-25
Min. Product Thickness(mm)	0.2	0.2	0.2	0.2	0.15	0.15	0.1
Calendering Product Width(mm)	500	920	1200	1250	1500	1900	2150
Motor power(KW)	15	55	75	110	185	185	280
Dimension(L×W×H)(mm)	3800x930x1890	3300×940×2350	6600×162×2490	6500×1970×2740	6580×2460×2920	7010×4150×3730	9800×4260×5720

Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
FAQ
1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.
Before leaving factory, this plate vulcanizing press needs to pass 24 hours' pressure test, pressure maintaining to test the bearing of the hydro-cylinder and piston stroke and guarantee no oil leakage and seeping to avoid unnecessary quality problems.
We can design and manufacture all kinds of non-standard plate vulcanizing press according to the customers' definite requirements.
