Automatic Bridge Saw with Blade Tilting 45 Degree (HQ400/600/700)

Product Description

Bridge Saw Info:
The bridge saw works by industiral computer with programs for automatic cut, and also capable of manual operation. All the operations are achieved from the touch screen panel.
It is able to cut 3.2 m length and 2 m width with laser guide sensor for cutting guide.
The table tilts up to 85° for easy load of big slabs and also turns 90/360 degree to change the cutting direction.
Bridge Saw Features:
1. Long bridge structure for cutting big slab.
2. Titling table for easy load of big slab.
3. Automatic cut by program on PLC system.
4. Precise movements on X, Y, Z axis ensuring cutting accuracy +/-0.2mm
5. Electric parts from Japan for stability and long service time.
6. Main parts made of cast iron for heavy duty work and stable performance.
Bridge Saw Specification:

Model	400	600	700
Blade Size	Φ300-Φ450 mm	Φ300-Φ600 mm	Φ300 - Φ700 mm
Blade Tilting	N/A	N/A	0°- 45°
Table Size (L×W)	3200×2000 mm 126"×79"
Table Rotation	0°- 90° / 360°		0°- 360°
Table Tilt	0°- 85°
Max. Cut size	3200×2000 mm 126"×79"
Spindle Motor	15 Kw 20HP	15 Kw 20HP	18.5 Kw 25HP
Size (L×W×H)	6×4.8×2.9 m	6×4.8×3 m	6×5.7×3.5 m
Weight	6,300 Kg	6,500 Kg	7,500 Kg

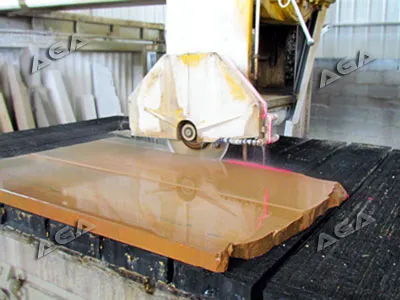

Bridge Saw Pictures:
FAQ:
1, How to pay to you ?
T/T in advance. We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading .
Similar products as below:

Model	XZQQ625A	HD600D
Pictures
Blade size	400-625mm 16"-25"	400-600 mm 16"-24"
Cut length	3200mm 126"	3200 mm 126"
Cut width	2000mm 78"	2000 mm 78"
Cut thick	170mm 7"	180 mm 7"
Spindle motor	15kW 20HP	15 Kw 20 HP
Size (L×W×H)	6×3×2.6 m	5.9×3.5×2.6 m
