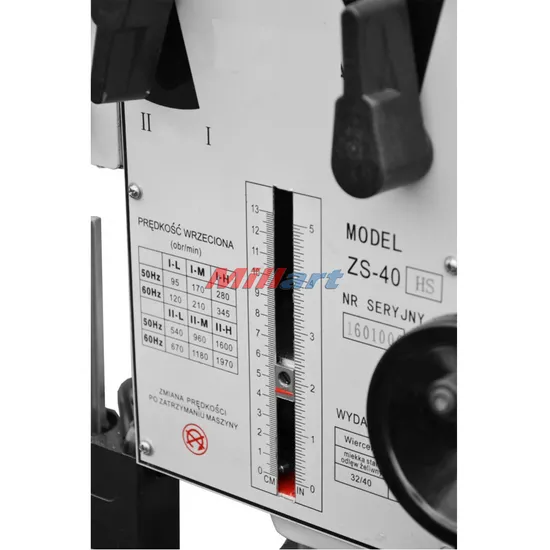

Cheap Tapping Machine Zs-40HS/Zs-40PS Vertical Drilling Machine
| US$1,000.00-1,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZS-40HS/ZS-40PS
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Spindle Travel
120mm
Spindle Taper
Mt4
Table Travel
515mm
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
Production Capacity
200 PCS/Month
Product Description
Cheap Tapping Machine ZS-40HS/ZS-40PS Vertical Drilling Tapping MachineFeatures:
The machine adopt gear driving and the driving moment is strong.
The machine has the six series speed variable feature, which can be widely fit for processing to kinds of common hard& soft material.
The head can rotated 360 degree and can tilted ±45 degree,reliable and easy job can be done.
The motor drive by the gear, which overcome the short coming of the belt skid.
According to the customer demand the machine can drill, enlarge, ream and tap the multi-holes by the multi-spindles.
ZS40HS without coolant system, ZS40PS with coolant system
Technical parameter:
| Model | ZS-40HS/ZS-40PS | |
| Max. Drilling capacity | mm | (Cast iron) 40 (Steel)32 |
| Max. Tapping capacity | mm | (Cast iron) M32 (Steel)M24 |
| Diameter of column | mm | 115 |
| Spindle travel | mm | 120 |
| Distance from spindle axis to column | mm | 272.5 |
| Max. Distance spindle nose to table | mm | 745 |
| Max. Distance spindle nose to base | mm | 1200 |
| Spindle taper | MT4 | |
| Spindle speeds | r/min | 95 170 280 540 960 1600 |
| Spindle speeds series | 6 | |
| Dimension of worktable | mm | 540x470 |
| Table travel | mm | 515 |
| Dimension of base | mm | 635x460 |
| Motor | w | Single 750 Triple1100 |
| G.W/N.W | kg | 350/310 |
| Packing dimension | cm | 72x74x186/72x74x191 |
Standard accessories:
| Drill chuck |
| Reduction sleeve and arbor |
| Draw bar |
| Wrench |
| Operate manual |
Optional accessories:
| Machine vice |
| Spindle guard |
| Coolant system |
