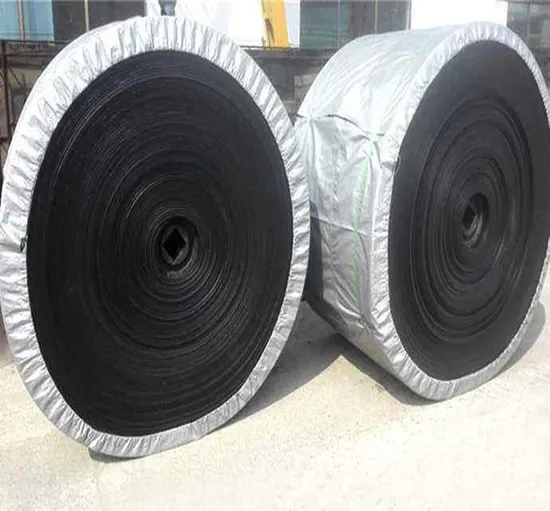

Heavy Duty Anti-Tearing Shock Resistant Conveyor Belt

Product Description

Product Description Steel cord conveyor belt is suitable for high strength, long distance, heavy loading transportation of materials, which are widely used in coal mineral, mines, metallurgy, electricities, ports, chemical industries, etc. It has the following characteristics:
Characteristic:1,High allowable strength and high safety factor;2,Minimal elongation, short stretching distance;3,The steel wire rope is firmly bonded with rubber and has excellent dynamic performance;4,Soft belt body, good grooving, good linear operation;5,Excellent impact resistance;6,Reliable joint, long service life.

Product featuresThe wire rope conveyor belt is composed of core glue, wire rope, cage cover layer and side glue. It has the advantages of mildew-proof, moth-proof, anti-aging, good heat resistance, high tear strength, and the belt surface can be refurbished after it is used out. Features High tensile strength. Good impact resistance, long life, small elongation in use, good groove formation, good flexibility resistance, suitable for long intervals, large distances, and high-speed conveying of materials.

Detailed Photos Applications:It is widely used in material delivery for coal/coke, mine, harbour, metallurgy, electric power and chemical industry.

Mining Conveyor Belt	Lump Size	Temperatrure of Materials Carried	Belt Surface Temperature
Coke	100~200mm(4~8 inch)	70~100 ºC	50~60 ºC
Cement	Powder	100~250 ºC	80~90 ºC
Clinker	10~30 mm (0.4~1.2 inch)	100~220 ºC	100~110 ºC
Molding	--	200~250 ºC	80~90 ºC
Metal Powder	--	170 ºC	120~130 ºC
Raw Material	below 30mm(1.2 inch)	180~220 ºC	100~120 ºC
Sintered Ore	25~200 mm(1~8i nch)	200~400 ºC	130~150 ºC
Return of Sintered Ore	below 10mm(0.4 inch)	260 ºC	180~200 ºC

Product classification1. According to the structure, it is divided into ordinary type and impact-resistant and tear-resistant type.2. According to the purpose: in addition to ordinary types, there are also types such as wear-resistant, heat-resistant, cold-resistant, acid and alkali-resistant, flame-retardant, tear-proof, non-flammable, and ozone-resistant.3. Varieties: According to the performance of the covering glue, it can be divided into: ordinary steel wire rope core conveyor belt, flame-retardant steel wire rope core conveyor belt, heat-resistant steel wire rope core conveyor belt, wear-resistant steel wire rope core conveyor belt, cold-resistant steel wire rope core conveyor belt, acid and alkali-resistant steel wire rope core conveyor belt, oil-resistant steel wire rope core conveyor belt, flame-retardant steel wire rope core conveyor belt and other varieties. The strength is higher than that of ordinary transportation belts, and the length is longer, which can reduce the conversion point and save power and energy consumption.
Product Parameters Standard specifications

Belt Strength	Cord dia (mm)	Cord structure	Pitch (mm)	Tension (N/mm)	Cover thick mm	Weight (kg/m)	Pulley Min mm	Cord stre KN/pc
ST-630	3.0	6*7+1WS	10	90	5*5	20.2	800	6.93
ST-800	3.5	6*7+1WS	10	110	5*5	20.6	800	8.8
ST-1000	4.0	6*7+1WS	12	140	6*6	24.7	800	13.2
ST-1250	4.5	6*7+1WS	12	175	6*6	25.4	800	16.5
ST-1600	5.0	6*19+1WS	12	225	6*6	26.0	1000	21.12
ST-2000	6.0	6*19+1WS	12	285	8*6	30.0	1000	26.4
ST-2500	7.5	6*19W+1WS	15	355	8*6	32.2	1250	41.25
ST-3150	8.1	6*19W+1WS	15	450	8*8	35.7	1400	51.98
ST-4000	9.1	6*19W+1WS	16	570	8*8	37.8	1600	74.8
ST-4500	9.7	6*19W+1WS	16	645	8*8	38.7	1800	79.2
ST-5000	10.9	6*19W+1WS	17	751	8.5*8.5	41.9	1800	93.5
ST-5400	11.3	6*19W+1WS	17	760	9*9	43.9	2000	101
ST-6300	12.3	6*19W+1WS	18	900	10*10	48.3	2000	124.74

Rubber Cover

Grade	Tension Strength N/mm Min	Elongation at Break % Min	Max. Abarsion mm3
H	24	450	120
D	18	400	100
L	15	350	200
K	15	350	200
