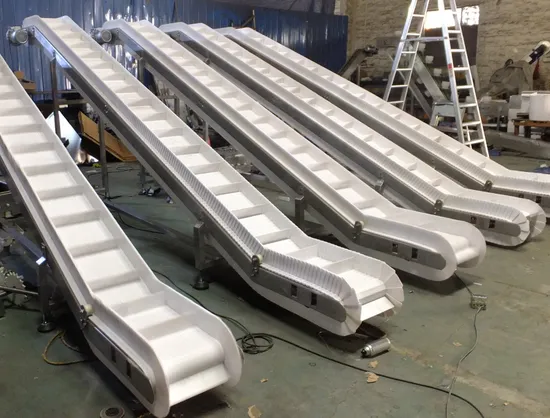

Inclined Belt Conveyor for Packing System

Product Description

304 Stainless Steel Inclined Conveyor
Application: Z type acclivitous Conveyor is very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, .such as snack foods, frozen foods, vegetales, fruits, confectionary. Chemicals and other granules.
Features: 1. " Hooked " flights allow a 75 degree angle of feed to save space.
2.The conveyor body can be designed to allow a full wash down facility and the integral side flights flex around the corners to mean that there are no side guides to remove for cleaning.
3. All parts can be taken down or installed easily,belt material can be changed between PP/PVC/PU flexibly according to requirements.
4. The machine can be used as a stand alone conveyor or be used with our vibratory feeders and other packaging systems.It can be up to 6 metres,options include variable speed inverter control if required.
Specifications

Name	Inclined Conveyor
Belt material	Food grade polypropylene (PP)
Baffle distance	254mm(adjustable)
Frame material	stainless steel/ carbon steel
Conveying capacity	3-7m3 / h
Voltage & frequency	Three-phase AC 220V/380V,50Hz
Power	1.1 KW
N.W.	450KG
Discharge Height	3480mm
Packing size	6090mm(L)*660mm(W)*650mm(H)

Factory Show Office Area Assembly Area
Material Processing Area
Packing Area Cases we did
About Shipping
Our services Pre-sales 1. Within 2 hours inquiry feedback between 8:00am--20:00pm
2. 24 hours technical proposal
3. Full assistance product selection
4. Free for designing and drawing
In-sales 1. 4 times producing feedback
2. Full supervision during production
3. 24 hours standby to make sure you can find us
4. Free installation and debugging before delivery
5. Free for training operator and mechanic
After-sales 1. At least 3 times following up
2. Email or online help after good arrived
3. Oversea installation and testing is available
4. Cost price for maintaining the machine and accessories beyond one year warranty.
FAQ Trade terms: EXWORK,FOB,CIF,CFR Payment terms : T/T 30% deposit, 70% balance before delivery Delivery Time : Usually 25-35 days, depends on different order quantity. Shippment : By sea, by air ,by railway or by truck, according to customer requirement Packing :Bubble film wrapping inside, Export Standard Plywood Case outside. Warranty :One year free for replacement of wearing parts, cost price beyond warranty If you have interesting of our product,
