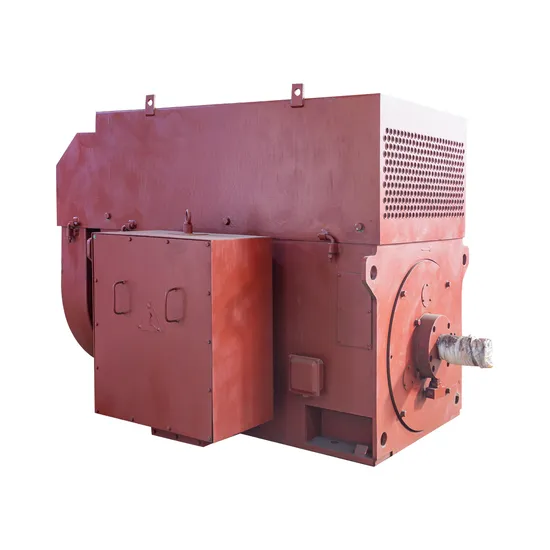

Y Asynchronous Synchronous AC Electric Motor
| US$19.00-99,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Y series
Number of Stator
Three-Phase
Species
Y, Y2 Series Three-Phase
Rotor Structure
Squirrel-Cage
Casing Protection
Closed Type
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC
Color
Can Be Customized
Voltage
3kv.3.3kv.6kv.6.6kv.10kv.11kv
Protection
IP44 or IP54,IP55
Duty
S1
Insulation Class
F
Cooling Method
IC611
Frequency
50Hz/60Hz
Transport Package
Standard Export Package
Specification
according to the type
Trademark
XEMC
Origin
China
HS Code
8501530090
Product Description
Type: Y Asynchronous Synchronous AC Electric Motor
This series of motors are specially used as prime movers for various fans of large thermal power equipment, such as exhaust fans, induced draft fans, blowers, etc.
Efficiency level: High efficiency energy-saving
Rated output: 150~8000 kW
Rated voltage: 3000V, 3300V, 4160V, 6000V, 6300V, 6600V, 10000V
Rated frequency (speed):
50Hz (3000/1500/1000/750/600/500/425/375/325 r/min)
60Hz (3600/1800/1200/900/720/600/500/450/400 r/min)
No. of poles: 2P, 4P, 6P, 8P, 10P, 12P, 14P, 16P, 18P
Mounting methods: Horizontal foot mounted IM1001 (B3)
Material of frame/housing: Fabricated in welded steel plate frame
Frame size: 355~800 frame
Service Factor: 1.00
Insulation Class: F (155ºC)
Temp. Rising: ΔT=80°K
Bearing type: Roller/Ball bearing
Working Duty: S1 (Continuous)
Ambient Temperature: -20°C ~ 40°C
Altitude: <=1000 m.a.s.l
Ambient humidity: <=90%
Protection Class: IP44, IP54, IP55
Cooling: IC611 Self-ventilated with air-to-air heat exchanger, heat exchanger on top of motor
Lubricating: Grease lubricated bearings
Grounding lug: On the frame and terminal box
Temperature detector: PT100
Material of nameplate: Stainless steel
Metric Threaded Cable Entries on the Terminal Box
