Factory Direct Sale 4 Axles Heavy Duty Lowboy Semi Trailer for Excavator Vehicle Transport Container Trailer Lowbed Semi Truck Trailers with Hydraulic Ladder

Product Description

Product Description

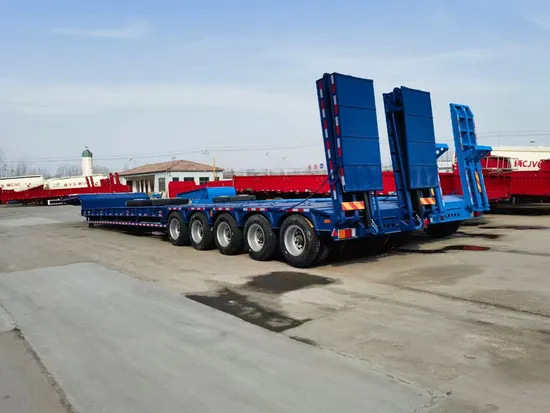

4 Axle Lowbed Semi Trailer
Low boy trailer is widely used, generally for medium and long distance freight. Its frame is a through-beam structure, and the longitudinal beam adopts straight live gooseneck type.
The height of the web varies from 400mm to 550mm, the longitudinal beam is welded by automatic submerged arc welding, the frame is shot blasted, and the crossbeam is welded through the longitudinal beam as a whole.All accessories are world famous brand or independent products of GunagEn factory, quality is guaranteed.

Dimension	16500*3000*1800mm (0utside)
Payload(kg)	80000kg
Kerb Mass(kg)	12300kg
GVWR(kg)	72300kg
Main beam	Heavy duty and extra durability designed l beam, Opting for high tensilesteel 0345B,welded by automatic Submerged-Arc processes
Frame Beam	Outside Beam The height of the out beam is450mm wide is210mm,upper plate is 18 mm wide is 210mm,down plate is 20 mm,middle plate is 10mm
Axle	4 axles, 13Ton Fuwa brand 16ton brake pads
Landing Gear	Fuwa 28T lifting capacity with two speed
King Pin	2.00 inch bolt-in king pin Brand JosT
Suspension	Mechanical suspension reinforced type
Leaf Spring	90mm(w)*13mm(T)*10 Layer
Pneumatic Braking System	Dual line pneumatic brake system,T30 air chamber ,40L air tanksEmergency relay valve
Rim	9.0-20*12 pCS
Tire	825R20 *16 pCS
Accessories	One standard tool box
Spare tire rack	one
Electrical system	24 volt electrical system.7 pin electrical connector. Parking stop, reversenumber plate and indicator lights.rear lights conform to European standard, rear front and side reflectors
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosiveprime, 2 coats of final paint
Shipping Terms	By Bulk CargO/RORO OR 45ft HQ container

Company Profile Packaging & Shipping FAQ Q1: Are you a trader or a manufacturer? A1: We are manufacturers. We have exhibition rooms, truck maintenance workshops and professional workers for sale. Q2: How to do after-sales service? A2: We will give video guidance by phone or computer. You can tell our sales staff about any use problems, and we will give you guidance. Q3: What is the transportation process? A3: For the field of trucks, most of the services we use are bulk shipping services. Q4: May I visit your factory? A4: Welcome to visit our seminar. We are located in Shandong and prefer face-to-face conversation. Question 5: What kind of payment terms do you offer? A5: We can do TT, LC, 50% in advance and 50% before shipment.
