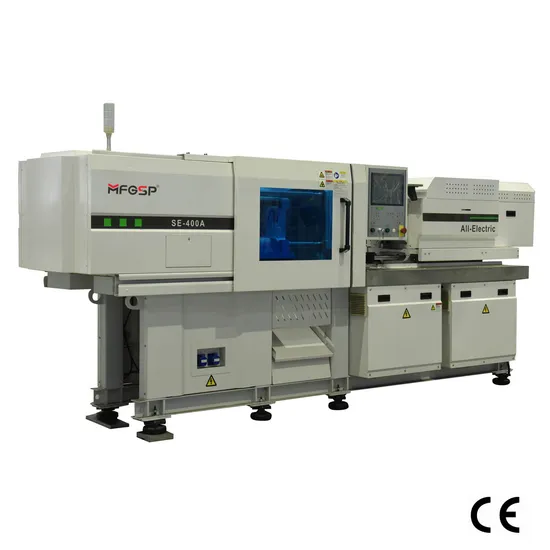

Star Supplier Plastic All Electric Injecting Molding Machine High precision Injection

Product Description

All Electric Injection Molding Machine

Performance characteristic:
Zero-resistance clamping injection guider structure, heavy loaded guider device supported by linear track, better wear resistance, lower friction and more smooth operation. Optimize mold structure, tie bar no touch with moving platen,no lubrication. The system has high rigidity and strength, guarantee the accuracy of platen parallel excellently.
T-slot & screw fixation platen embedded moldlocating ring design, high-standard clampling system reduces mold loss and makes more easy mold installation.
Fast and smooth mold movement, high torque, less resistance. Clamping servo motorconnects ball screw, flexible operation and simply maintenance. High- quailty belt, warranty 10 years;superior rotating wheel,low inertia.
Top responsibility servo motor and high toreque ball screw is key element, origin Japan technology to keep advantage leading ir the word, precise for mold movement.
Parameter:

MODEL			SE-600V
CLAMP TONNAGE		kN	600
SPACE BETWEEN TIE-BARS		mm	365x325
PLATEN DIMENSION		mm	520x480
OPEN STROKE		mm	270
MOULD THICKNESS		mm	120-380
EJECTOR STROKE		mm	60
EJECTOR FORCE		kN	19.6
EJECTOR NUMBER			5
MACHINEWEIGHT		T	3.2
SCREW DIAMETER		mm	18	20	22	22	25	28	25	28	32
INJECTION CAPACITY		cm3	19	24	29	40	52	65	64	80	105
INJECTION WEIGHT (PS)		g	17	21	26	36	47	59	58	73	95
PLASTICIZING CAPACITY (PS)		kg/h	12.5	15	18	18	25	35	25	35	48
SCREW SPEED		rpm	400			400			400
HEATER BAND			3+1			3+1			3+1
HEZVTER POWER		kW	2.6			4.8			5.6
NOZZLE PRESSING FORCE		kN	15.7			15.7			19.6
STANDARD			60			130			165
INJECTION SPEED		mm / s	200			200			200
INJETION RATE (PS)		cm3 /s	58	72	88	76	98	123	98	123	161
INJECTION PRESSURE		Mpa	303	245	203	292	240	188	272	217	180
		kgf/cm2	3086	2500	2066	2978	2448	1918	2774	2214	1836
MAX.INJECTION HOLD PRESSURE		Mpa	242	196	162	233	192	156	217	176	144
		kgf/cm2	2469	2000	1653	2382	1958	1594	2220	1795	1468
TOTAL POWER		kW	10.6			16.8			20.6
OPTION			60H			130H			165H
INJECTION SPEED		mm / s	450			400			400
INJETION RATE (PS)		cm3 /s	117	145	175	152	197	247	196	246	322
INJECTION PRESSURE		Mpa	303	245	203	317	245	195	276	220	168
		kgf/cm2	3086	2500	2066	3228	2500	1993	2815	2244	1718
MAX.INJECTION HOLD PRESSURE		Mpa	242	196	162	253	196	156	221	176	135
		kgf/cm2	2469	2000	1653	2583	2000	1594	2252	1795	1374
TOTAL POWER		kW	17.6			19.8			28.8
We reserve the right to change specifications without prior notice.

OVERALL DIMENSIONS
PLATEN DIMENSIONS
Application:
The SE series of all-electric injection molding machine are more suitable for household appliance, medical,electronic optics, packaging,auto parts, and other industries with its advantages of high speed, high efficiency, high precision, energy saving and environment cleaning .

Related products:
After Sales Service
Debugging before shipping: Before shipping,all the lines will be strictly tested to ensure that customers use smoothly.
Installation at site: strict supervision for installation,commissioning and running.
Customers files establishment: detailed record on customers equipment information,and the replacement of spare parts are kept in profile for a long term save.
Regular visit system:after equipment installation and running,call to customers within one week,life-long follow-up service to the quality of products and services,to ensure that customers are worry-free.
Trouble shoot response time:establish professional sfter-sale service team,after breakdown happened,ensure engineers to provide solution within 24 hours,and solve the problem
Spare parts:Sufficiently supply,delivery in time
