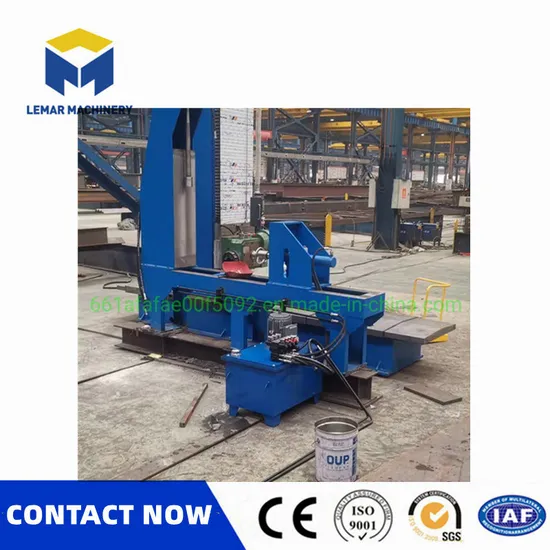

I Beam Box Column H Beam CNC End Face Milling Tool Machine

Product Description

I Beam Box Column H beam CNC End face milling tool machine The CNC End face milling machine for H beam box beam Pipes has high processing efficiency.
The CNC automatic tool change and so on make the processing process compact and improve the labor productivity of H beam box beam fabrication.
The end face milling machine has a large processing range and is suitable for end face cutting of metal materials such as castings and steel parts, and is widely used in the machinery manufacturing industry.
The face milling machine can mill the plane of the workpiece, chamfer the trapezoidal surface and the T-slot, the drilling can reach φ50mm, and the boring can reach φ400mm.
The face milling machine consists of a bed, a sliding table, a column, a lifting table, a milling head, a horizontal feed mechanism, a lifting mechanism, and an electrical control system. Face milling generally needs to be equipped with a hydraulic table to position and clamp the workpiece. The hydraulic workbench consists of two workbenches, two positioning seats, two pressing seats and a hydraulic station. End Face milling machine is used for milling both ends of welded or rolled H-beam or BOX-beam. It has the advantages of convenient operation, simple structure and quick adjustment. It is one of the necessary equipment for professional manufacturers of welded steel.
Technical Details:

Model	DX0810	DX1212		DX1215	DX1530	DX2020	DX2025	DX2040	DX3060
Machining range of face(mm)	800×1000	1200×1200		1200×1500	1500×3000	2000×2000	2000×2500	2000×4000	3000×6000
Horizontal the milling speed(mm/min)	50-440	50-500
Vertical milling speed(mm/min)	22-550	22-600		22-600	22-600	22-600	22-600	22-600	22-600
Horizontal motor (kw)	3	4		4	4	4	4	4	7.5
Vertical motor (kw)	1.5								2.2
Milling angle(°)	0-45
Milling Head Specifications	TX25A		TX32A				TX40A		TX50A
Milling head power (kw)	4		5.5				7.5		11
Cutter rotational speed(rpm)	125-1420		125-1440				1440		1460
Applicable cutter diameter(mm)	100~160		125~250				160~320		200~400
Gross Weight (t)	4	5.5		5.8	7.6	8.3	8.5

Box beam H beam fabrication line machines need: CNC Plasma flame strip cutting machine
Automatic or manual spot welding assembly machine
Submerged arc Gantry type welding machine
Cantilever double arc double wire arc welding machine
Box beam Electroslag welding machine
H beam 3in1 Assembly welding strightening machine
U beam Box beam assembly machine
40mm 60mm 80mm Flange straightening hydraulic/mechanical machine
(CNC)End face milling machine
Sand shot blasting machine
Others we have:
Welding column and boom manipulator
Welding rotary positioner
Welding turning rotator
Straight seam welding machine,etc.
