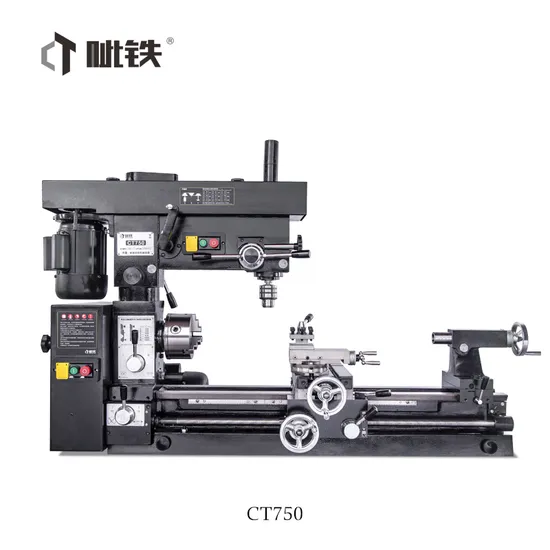

Small Mini Multi Purpose Lathe Mill Drill 3 in 1 Combo Machine CT750
Basic Info.
Model NO.
CT750
Type
Horizontal Lathe
Processing Accessory
Mini Combine Machine
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-Tool Holder Manual Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
HS
8458190000
Feature
High Precision
Produce Capacity
1000
MOQ
1
Transport Package
Standard Wooden Packing
Specification
980*570*1450mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Packaging & Delivery
Package Size
155.00cm * 65.00cm * 110.00cm
Package Gross Weight
300.000kg
Product Description
| Turning-parameters | |
| Max. swing over bed | 300mm |
| Max. swing over tool post | 140mm |
| Max.machining length | 750mm |
| Spindle taper | MT4 |
| Spindle bore | 26mm |
| Max. travel of tail-stock sleeve | 50mm |
| Taper of tail-stock | MT3 |
| Middle carriage travel | 200mm |
| Small carriage travel | 80mm |
| Metric thread/Grade | 0.5~3mm/14 |
| Inch thread/Grade | 11~40T.P,I/20 |
| Transverse feed/Grade | 0.05~0.5mm/20 |
| Longitudinal feed/Grade | 0.05~0.5mm/20 |
| Spindle speed range/Grade | 160~1600r/min(6) |
| Motor power | 750w |
| Drilling and milling-parameters | |
| Max.Drilling capacity | 20mm |
| Table size | 425x150mm |
| T-slots size | 12mm |
| Spindle taper | MT3 |
| Spindle travel | 80mm |
| Distance from spindle to column guide rail | 310mm |
| Distance from spindle end to table surface | 240~320mm |
| Spindle speeds | 315~2000r/min(9) |
| Rotation angle of drilling and milling box head around the column | 360° |
| Drilling and milling head box vertical lifting stroke | 80mm |
| Motor power | 550w |
| other | |
| Net weight/gross weight | 280KG/300KG |
| Overall dimensions | 1450x570x980mm |
| Package Size | 1550x650x1100mm |
