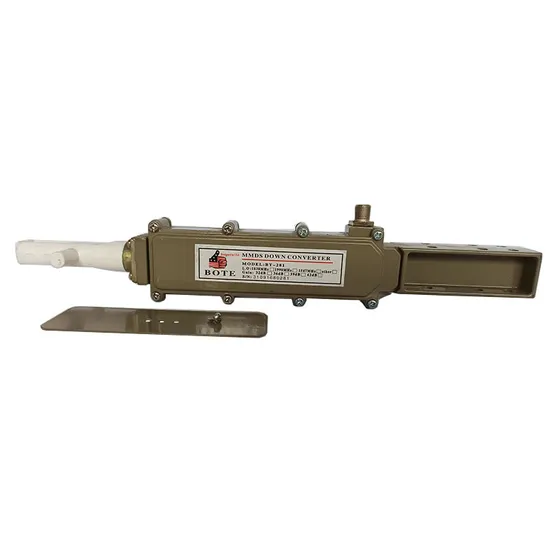

High Quality High Performance Smart Dual Panel MMDS Down Converter

Product Description

High Definition High Quality Dual Panel MMDS Down Converter Detailed Photos
Specification:

Input Frequency	2500 to 2700MHz(can select)
Noise Figure	2.5dB@24dB,1.8dB@32dB,1.4dB@36dB
Image Rejection	≥50dB
VSWR	1.5:1
If Rejection	≥80dB
PCS Rejection	≥100dB
WCS Rejection	≥50dB
3 order intermodulation	≤-50dB
Conversion Gain	24dB±1.5dB,32dB±1.5dB,36dB±1.5dB
L.O. Leakage Antenna Port	≤-85dBm
L.O. Leakage IF-Port	≤-50dBm
L.O. Phase Noise	-80dBc@100Hz offset -92dBc@1kHz offset -93dBc@10kHz offset -95dBc@100kHz offset -120dBc@1MHz offset
Output P1dB	+14dBm(typical)
Gain Flatness Over Entire Range	≤±1.5dB
Gain Flatness	≤0.2dB/CHANNEL
IF Output Impedance	75ohms
DC Current Consumption	14v-24v
DC Input voltage	14v-24v
Spurious in IF Band	≤-100dBm
L.O. Frequency	1838,1998,,2030,2033,2278, 2065MHz(can select)
L.O. Stability	≤±30KHz
Operating Temperature	-40centigrade to +70centigrade
Input Type	BT280:Integrated Dipole Antenna
Lightning Protection	Meets IEEE Stands
100% Hermetic	Sealed

FAQ 1.How can I get some samples or OEM service? A: Yes, we are honored to offer you some samples and support OEM service.
2. Where is your factory located? How can I visit there?
A: Our factory is located in Hefei City, Capital of Anhui Province, China, near Shanghai.You can fly
to Hefei Xinqiao International Airport directly. All our clients, from home or abroad,
we are warmly welcome to visit us.
3.Is it safety for the shipping? How can do if any questions happened on the way?
A: As for the packing, we use the special carton with high quality and each in a box, or
produce in your need. If any questions, we will reply you or solve within 24 hours.
4.Can you make products as our specification?
A: Yes. Our Company have a professional engineers team,can design the products as
your specification.
5. How does your factory do regarding about quality control ?
A:Quality is priority.The products will be check many times before final packing.
6. Why choose Anhui Bowei Electronics Technology Co., Ltd?
A: 21years specialized in LNB, MMDS down converter and Antenna etc.
4 years Gold Supplier in ******, and we have professional team and good after service. Company Information
Bowei Electronics is a professional manufacture21 years specialized in LNB, MMDS down converter and Antenna etc. Anhui Bowei Electronics Technology Co., Ltd is a National High-tech Enterprise mainly engaged in the research, development, production, fabrication, marketing of microwave high frequency electronics and over-voltage and over-current protection equipment.
Our products command a good market both at home and abroad. Microwave High Frequency Electronics are mainly exported to Europe, Southeast Asia, Middle East, North America etc. 86 countries and areas. In the domestic markets, Anhui Bowei Electronics services for the national Radio and Television"Hu Hu Tong" Household Project and also supports the digital improvement for Regional Radio and TV Cable Network Companies. Meanwhile, Over-voltage and Over-current Protection Equipment are widely distributed around the country and mostly applied in fields of electricity, petroleum, chemistry, metallurgy, cement and steel.
In the future, Anhui Bowei Electronics will continue to communicate and cooperate with domestic and overseas counterparts in the main products to arrive at the aim of providing our honored customers with more excellent quality products and more superior service.
