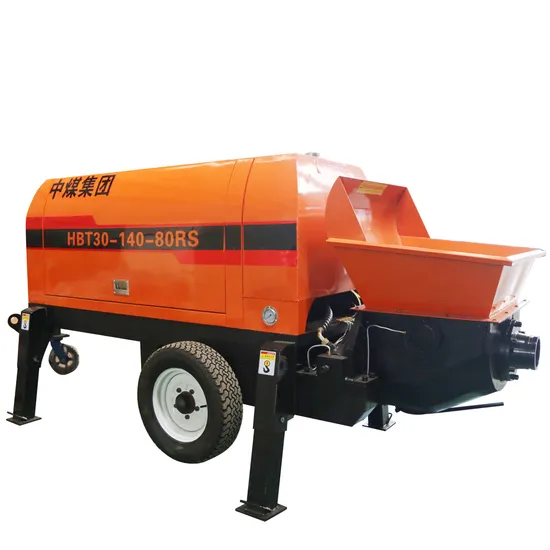

Small Portable Concrete Machinery Hydraulic Manual Trailer Truck Mini Diesel Stationary Concrete Pump
Basic Info.
Model NO.
HBT40/8/45 Concrete Pump
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
35 M3/H
Feeding Height
1400mm
Vibrating Amplitude
1.1mm
Certification
ISO9001: 2000
Condition
New
Color
Yellow
Model
Hbt40/8/45 Concrete Pump
Working Capacity
35 M3/H
Outlet Pressure
10MPa
Rated Power
4108
Rated Speed
1480r/Min
Hydraulic Tank Volume
240L
Dimensions L*W/*H
4300*1750*1850mm
Total Mass
3300kg
Transport Package
Wooden Case or as Required by The Customer
Specification
4300*1750*1850mm
Trademark
ZHONGMEI
Origin
China
Production Capacity
1000 Sets Per Month
Packaging & Delivery
Package Size
430.00cm * 180.00cm * 190.00cm
Package Gross Weight
3300.000kg
Product Description
Hot SalesProduct Description
Introduction of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
The concrete conveying pipe shall be piped according to the characteristics of the project and construction site and the concrete pouring plan. It is advisable to shorten the length of the pipeline and use less elbows and hoses. The laying of the conveying pipe shall ensure safe construction, which is convenient for cleaning the pipeline, troubleshooting and assembly, disassembly and maintenance. In the same pipeline, concrete conveying pipes with the same diameter should be used; when new and 1-day pipe sections are used at the same time, the new pipe should be arranged at the place where the pumping pressure is higher; the pipeline should be arranged horizontally, horizontally and vertically.
zmwm21
Product Parameters
Parameters of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
| Maximum Theoretical Concrete Delivery Volume | 35m³/h |
| Maximum Pumping Concrete Pressure | 10MPa |
| Distribution Valve Form | S-pipe valve |
| Concrete Conveying Cylinder Bore*Stroke | Φ160*1000mm |
| Outlet Diameter | Φ150mm |
| Rated Power | 4108 |
| Rated Speed | 1480r/min |
| Hydraulic Circuit Form | open circuit |
| Pumping Xiyong Oil Pressure | 28MPa |
| Stirring System Oil Pressure | 8MPa |
| Hydraulic Tank Volume | 240L |
| Maximum Conveying Vertical Distance | 120m |
| Maximum Conveying Horizontal Distance | 250m |
| Maximum Particles Allowed | 40mm |
| Dimensions L*W/*H | 4300*1750*1850mm |
| Total Mass | 3300KG |
Detailed Photos
Photos of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
