Product Description

Product Description

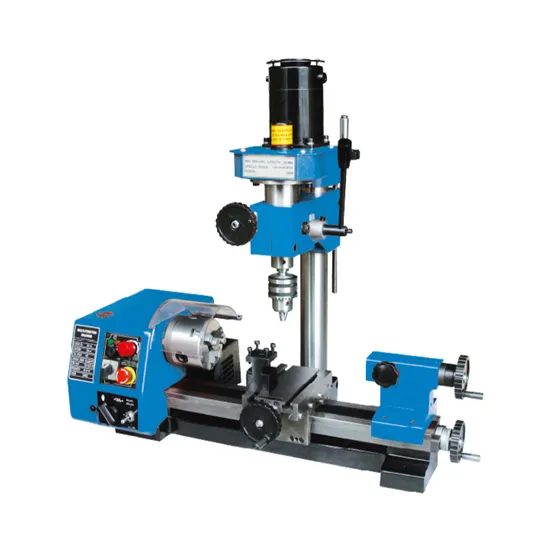

SP2301 Multi-purpose machine belongs to one of our most economic manual Multi-purpose machine. It is new condition not used Multi-purpose machine. And it is small in size and delicate in design. This Multi-purpose machine is made in China, but have very high quality. The main features are as below:
1. Chuck guard is with automatic power off.
2. Belt drive
3.Gear drive is available.
4. Brushless motor is available.
5. Widely used, simple to operate, and a wide range of processing. After high frequency quenching process and precision grinding of high-quality cast iron bed.
6. Good quality and reasonable factory price.
7. Made in China, supplier from Shanghai China.
8. Good after sale service.
9. Power supply could be customized 110v/220V.
10. All machines have to pass the checklist of the machine precision before shipment

Product Parameters

Model	SP2301
Swing over bed	140mm
Distance between centers	250mm
Hole through spindle	10mm
Spindle taper	MT2
Tailstock taper	MT1
Spindle speed	100-2000rpm
Cross slide travel	50mm
Range of threads: metrci	0.5 ~ 1.25 mm ( 5 thread pitches)
Or inch	16-24 TPI ( 5 thread pitches)
Drilling and milling
Max. drilling/milling capacity	10mm
Travel of drilling/milling spindle	30mm
Spindle speed	100 - 1500rpm
T-slot	8mm
Motor output power	150W
Packing size	690x430x615mm
Overall dimensions	620x330x570 mm
Net/Gross weight	45/51 kg
