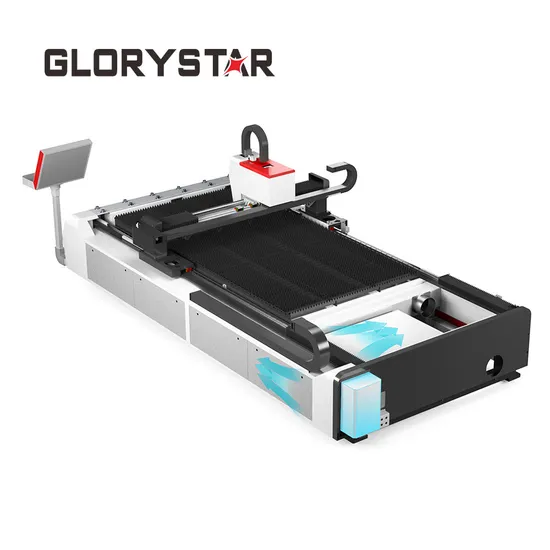

Easy to Maintenance GS-3015 Laser Cutting Machine From China Leading Supplier

Product Description

High-Tech CNC Fiber Laser Cutting Machine for Carbon Steel
Product Features The strong frame is completely welded, high temperature annealing and stress relief treatment to ensure no deforming
Imported high precision ball screw transmission / rack & pinion, high precision linear guide rail
Imported servo motor and drive, imported high-rigidity precision gearbox.
Equipped with auto-lubrication device, with dust removal and smoke extract system in cutting area
Modular structure of laser generator, high performance and free from maintenance
Professional laser cutting software, easy, convenient and smart to operate, easily design all kinds of graphics and texts for cutting.
Technical Table GS is the most popular mode of fiber laser cutting machine. more than 2000sets of GS fiber laser cutting machines are working in the market. GS enjoys high reputation in the market by its high quality and price ration as well as high stability and efficiency. GS enjoy the honour of well-known product in China as well some overseas market. Now we have GS third generation to appreciate the customers.
Delicate and Flexible The core transmission components such as gear rack and reducer adopt international famous brands, which have high idle speed; The machine is equipped with professional operating software, which supports advanced technologies such as cooling point, sharp angle ring cutting and release angle, support dual-drive error monitoring function.
Low Space Cost All-in-one integrated design, which means it's small in size, less floor space occupation, low requirements of the site, no need to be equipped with professional workshops. According to the development demands of the enterprise, the forklift can be used to quickly adjust the position of the machine at any time, which is convenient and flexible.
Technical parameters

Code name of width	3015
Maximum material width (mm)	3000×1500
X axis travel (mm)	1520
Y axis travel (mm)	3020
Z axis travel (mm)	80
X/Y axis positioning accuracy	±0.05mm/m
X/Y axis repeat positioning accuracy	≤0.04mm
Maximum positioning speed	140m/min
Maximum acceleration	1.2G
Slit width	0.1-0.5mm(Measured value below 3mm thickness)
Incision roughness	Ra3.2-Ra25.4(Measured value below 3mm thickness)
Maximum cutting thickness range	Refer to the craft parameter table
Minimum setting unit	0.001mm
Floor area of machine tool (mm)	6000×3000
Host volume (mm)	4850*2250*1700
CNC system	CypCut
Monitor	19″LCD
Transfer method	Gear rack dual drive
Maximum load-bearing capacity of worktable (tons)	1
Machine weight (tons)	3
Total installed power consumption (approximately)	Laser power:1000W		17kW
	Laser power:1500W		19.5kW
	Laser power:2000W		22kW
Power requirements	AC380V,50Hz;3P+N+PE
Total power protection level	IP54

Cutting Samples
>>> After-sale Service
Installation and debugging
Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Training
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.
24/7 online service
All our laser equipment is provided with 12 months warranty. Glorystar Laser offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,Glorystar Laser will send engineers to your factory as soon as possible and only charge the cost of parts.
Accessories supply
IPG laser source is 2 years. Other parts is one year except for optical and consumable parts. Prolong serve is always available for option. Free of charge for fixing and changing parts within warranty. Only changing parts , the freight should be charged by customers.
Remote diagnosis
Glorystar Laser can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, saving you a lot of time.
Additionally, Glorystar Laser will establish a special user profile for all customers who have purchased equipment from us to record your usage, maintenance records and other information. This will help us to learn about customer information more quickly and thus provide necessary upgrades according to customer feedback
ABOUT GLORYSTAR LASER
Glorystar Laser Technology Co.,Ltd. is a high-tech enterprise combining state-of-the-art technologies to develop and produce high power laser cutting machines. We have the manufacturing capabilities to produce 500W-30000W metal laser cutters to satisfy the diverse needs of our customers. Our main product types include tube fiber laser cutting machine, sheet fiber laser cutting machine, tube and sheet combined fiber laser cutting machine, all cover exchange platform laser cutting machine, single table fiber laser cutting machine and so on.
Our group operates four companies, each of them can complete equipment assembly and debugging independently, and ensuring timely delivery for customers. Today, Glorystar Laser has more than 8000 cooperative clients in over 130 countries around the world, including America, England, Italy, Argentina, Thailand, Malaysia, and so on. CERTIFICATION
To produce high-quality fiber laser cutters, we maintain strict control over product quality starting with the sourcing of raw materials and components. At present, the products have passed certification from ISO, America FDA, Switzerland and SGS, and European and America CE, technically in line with international standards.,
200+ R&D TEAM
Glorystar Laser employs an R&D and design team made up of more than 200 people who work extremely hard to create optimal laser cutting products according to market changes and customer demands.

RESEARCH ROOM
In addition, our company has been cooperating with many universities for a long time to establish the "Laser Application Research Institute" and the "Intelligent Manufacturing Research Institute" for deep research on laser applications and intelligent manufacturing applications.
