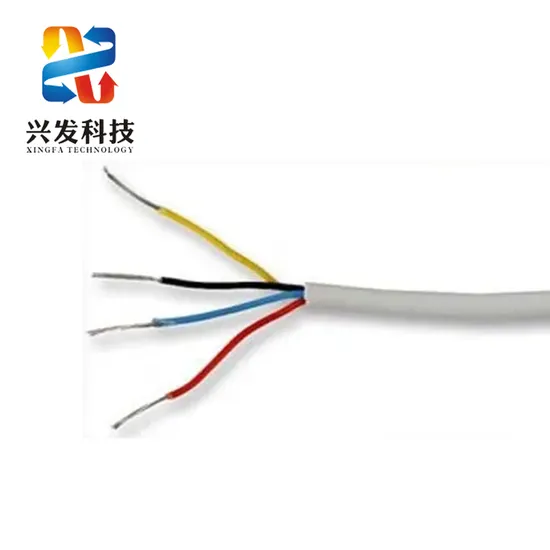

4c/6c/8c Burglar Alarm Cable Form China
| US$0.01 | 10,000 Pieces (MOQ) |
Basic Info.
Certification
CE, ISO, RoHS
Center Conductor
Copper Clad Steel/Solid Bare Copper
Dielectric
PVC
Shield
Al Foil
Jacket
PVC
Color
Per Customers′ Special Requirement
Certificate
ISO9001, Ce, ETL, RoHS, Reach, BV
Transport Package
Coil, Wooden Reel, Plastic Reel, and Paper Reel
Specification
CE, ROHS, REACH, ETL, UL, ISO, SGS, BV
Trademark
Xingfa or OEM
Origin
Hagnzhou, China
HS Code
854491100
Production Capacity
18000kilometer/Month
Product Description
high quality alarm wire for security alarm system1)Structure: Unshielded, shield
A> Conductor: CCA (TC, BC, TCCA are available)
B> Cable core: 2C, 4C, 6C, 8C, 10C, 12C, 14C, 16C, 20C
C> Insulation: PVC
D> rip cord: Yes
E> Shield: Al/foil
F> Drain wire: No
G> Jacket: PVC
2)Application:
These cables are used for installation in signaling and alarm system.
This is suitable for the connection of contacts, detectors and sensors,
Infra-red as well as micro wave or mixed technology systems to the switch board.
3) More type
Type | Normal Area (mm2) | Specifications (mm) | Insulation Dia (mm) | Outside Diameter. (mm) |
Unscreened | 2x0.22 | 2x7/0.20 | 1.0 | 3.2 |
Unscreened | 4x0.22 | 4x7/0.20 | 1.0 | 3.7 |
Unscreened | 6x0.22 | 6x7/0.20 | 1.0 | 4.3 |
Unscreened | 8x0.22 | 8x7/0.20 | 1.0 | 4.6 |
Unscreened | 10x0.22 | 10x7/0.20 | 1.0 | 5.4 |
Unscreened | 12x0.22 | 12x7/0.20 | 1.0 | 5.6 |
Unscreened | 14x0.22 | 14x7/0.20 | 1.0 | 5.8 |
Unscreened | 16x0.22 | 16x7/0.20 | 1.0 | 6.1 |
Unscreened | 18x0.22 | 18x7/0.20 | 1.1 | 6.5 |
Unscreened | 20x0.22 | 20x7/0.20 | 1.1 | 6.8 |
Unscreened | 30x0.22 | 30x7/0.20 | 1.1 | 8.5 |
Unscreened | 40x0.22 | 40x7/0.20 | 1.1 | 10 |
Screened | 2x0.22 | 2x7/0.20 | 1.1 | 3.4 |
Screened | 4x0.22 | 4x7/0.20 | 1.1 | 3.9 |
Screened | 6x0.22 | 6x7/0.20 | 1.1 | 4.5 |
Screened | 8x0.22 | 8x7/0.20 | 1.1 | 4.8 |
Screened | 10x0.22 | 10x7/0.20 | 1.1 | 5.6 |
Screened | 12x0.22 | 12x7/0.20 | 1.1 | 5.8 |
Screened | 14x0.22 | 14x7/0.20 | 1.1 | 6.1 |
Screened | 16x0.22 | 16x7/0.20 | 1.1 | 6.5 |
Screened | 18x0.22 | 18x7/0.20 | 1.1 | 6.9 |
Screened | 20x0.22 | 20x7/0.20 | 1.1 | 7.3 |
Screened | 30x0.22 | 30x7/0.20 | 1.1 | 8.9 |
Screened | 40x0.22 | 40x7/0.20 | 1.1 | 10.8 |
4)Electrical Charateristics
Conductor Resistance: | <125ohms/km |
| Resistance Unbalance: | <2.5% |
| Dielectric Strength DC: | 2000V/1min |
| Insulation Resistance: | >3000Mohms-km |
| Impedance: | 100ohms+/-10% |
| Mutual Capacitance: | <100nF/km@1KHz |
5)Physical Properties
Conductor tensil strength: | >245Mpa |
| Conductor Elongation: | >10% |
| Insulation tensil strength: | >10Mpa |
| Insulation Elongation: | >200% |
| Insulation Hot shrinkage: | <5% |
