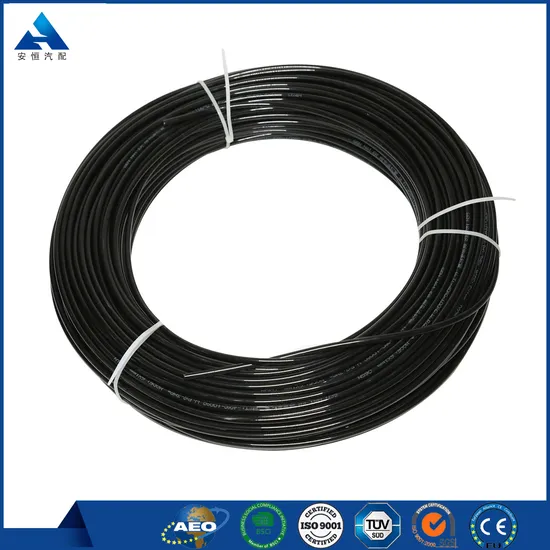

Durable PA11 / PA12 Nylon Tube Fuel Line Hose for Fuel System

Product Description

Product introduction Nylon coil tube Features
Nylon Tube Good wear ability, smooth surface, low resistance, anti- rustiness and anti-scaling Flexible, easily to be bended into all kinds of shapes, easy to install high chemical and hydrolysis resistance, stable dimension, little penetration, can be used more than ten years. High and low temperature resistance (- 40° C - 120° C), can transfer compressed air, water, oil, chemical liquid and so on. It is widely used in Light trucks, car hydraulic brake system, power steering tube, forklifts and loading trucks, mining -ehicles, kai heaW machinery, ships, and other works of hydraulic mechanical transmission and control system piping, paint and liquid resin s raying high-pressure pipe, air conditioning .
Product Specifications Nylon coil tube Specification

Specification	O.D mm	I.D mm	W.P bar	B.P bar	Min Bend Radius mm
3x0.5	3	2	30	90	18
4x0.75	4	2.5	31	93	20
4x1	4	2	45	135	30
5x1	5	3	34	102	35
6x1	6	4	27	81	40
8x1	8	6	19	57	50
10x1	10	8	15	45	65
10x1.25	10	7.5	19	57	65
12x1.5	12	9	19	57	70
14x1.5	14	11	19	57	80
16x2	16	12	19	57	130
18x1.5	18	15	15	36	155
23x2	23	19	20	33	120

FAQ
1. Are you a manufacture?
Yes, we have been in providing professional products in this field for 20 years.Hebei Anheng Auto Parts Co., Ltd. Mainly produces sub large tubes, pneumatic tubes, spring air tubes, nylon tubes, trailer spiral tubes, welded wire feed tubes, seven core wire assemblies, dust blowing tubes, TPU tubes and other products. The company is located in the north central part of Hejian City, Hebei Province, with superior geographical environment and convenient transportation. It is less than an hour away from Beijing and Tianjin. Welcome to visit the company.
2. Do you have stock?
Yes, generally for we have some stock for standard size, stock color is blue and black.
3. How' s your quality?
What we export are first-class productsbrand-new raw materials, absolutely notsecond-hand. With 22 years of productionexperience, advanced equipment and skilledtechnicians to ensure product quality.
4. Can order different size?
Yes, sure, for standard design product,you can choose any size you need But if specify color, we have MOQ.
5. Do you supply European type?
Yes, for special type, you can send a sample to us. we supply OEM service.
