Excellent Factory 150HP 3three Point Mounted Tractor Heavy Duty Hadraulic 7seven Discs Plow Plough

Product Description

Product Description

SHANDONG TIANSHENG MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD
--------The drafter of industry standard for fertilizer, spreaders, disc plows, disc harrows and share plows in China

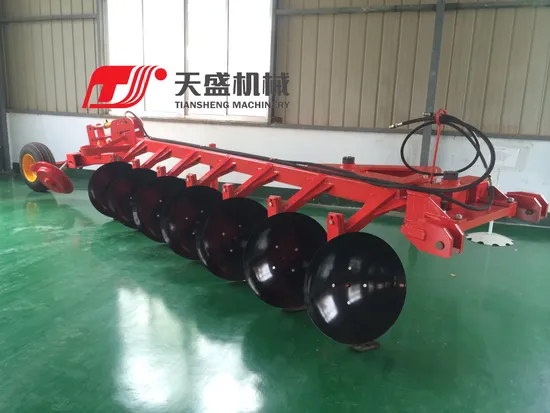

1LY(BX)-740 Disc Plough
The 1LY(BX)-740 disc plough is a semi-mounted disc plough equipped with hydraulic lift and adjustable tillage. It is suitable for ploughing dry land or wasteland, especially for ploughing high yield green fertilizer field and rice and wheat stubble return field. The PLOW HAS THE ADVANTAGES OF NOT EASY TO TANGLE GRASS JAM, good PASSING performance, good soil performance, turning soil, covering quality can meet the technical requirements of agricultural production, and has the advantages of small traction resistance, convenient operation and adjustment.

Model	Unit	1LY(BX)-740
Working width	m	1.2-2.1
Overall weight	kg	1900
No. of discs	pcs	7
Matched power	hp	More than 150
Linkage		hydraulic lifting and descending
Disc diameter	mm	710
Working depth	mm	250

The disc plough is a semi-suspended farm tool, which is mainly composed of suspension beam, connecting beam, Angle adjusting beam, plough frame, plough piece assembly, legs, tail wheel frame, tail wheel seat, tail wheel assembly, wheel frame, tire assembly, hydraulic system, safety card and other parts.

Company Profile
Certifications
Company events and honor
After Sales Service
All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .For the defect of material or workmanship has occurred in normal operation, The defective parts will be repaired or replaced free of charge. The guarantee parts will be offered to you in two ways.for the urgent request parts, We will ship the spare parts by international courier, The client will assure the courier expense. For the regular claim spare parts, we will ship them together with next order. We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately. We can also provide training services to different users. FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.

Other products


Due to the limited number of pictures uploaded,we have many products that are not on display.
All products are independently developed and manufactured by us.
If you are interested in our factory or our products,feel free to contact me.
