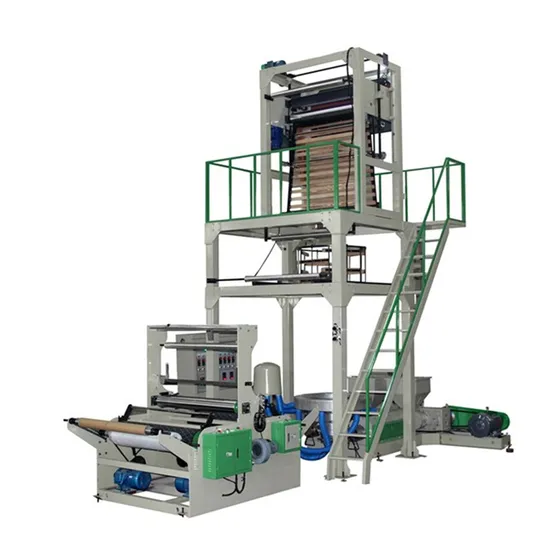

Plastic Production Line Double-Layer Co-Extrusion Rotary Die Plastic PE Film Blowing Machine

Product Description

Film Blown Extruder Machine Set Double-Layer Co-Extrusion Rotary Die Plastic PE Film Blowing Machine
USE: 1. Material: LDPE. HDPE. LLDPE, which are widely used for packing liquid, printed base material, products for export and industrial products. 2. Double layer co-extrusion laminated film can prolong the length for preservation of liquid package. 3. The cylinder and screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment. 4. The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring. 5. Double rolling and double cutting with torque motor to keep proper tensions and make rolling even and roll changing easy. 6. Optional equipment Double winder Rotary die head Auto loader Double lip air ring Air shaft Corona treatment Fast screen changer Air compressor All roller pneumatic type Our Advantages: 1. ISO 9001: 2000, GSG, SGS, CE, Production Assessment, Gold Supplier certificated 2. All machines will be examined and tested before delivery by 5 professional engineers (with more than 15 years machine experience) 3. Perfect after-sale system: We have more than 5 experienced technicians work abroad. 5. Yearly Production Capacity -- 200-300 sets 6. Prompt Reply Within 12 Hours RUIAN MINGDE Machinery Co., ltd. Has been the symbol of high quality and excellent service in machiery areas for many years, researched and developed our machines on basis of advanced technology introduced from developed countries. As a professional and experienced manufacturer in china, we're able to produce many kinds of machines like film blowing machine, bag making machine, paper bag machine, packing machine, printing machine and leather & shoe machines, ect.

Model	MD-2L1200	MD-2L1500	MD-2L2000
Suitable Material	LDPE LLDPE HDPE	LDPE LLDPE HDPE	LDPE LLDPE HDPE
Max Film Width(mm)	1200	1500	2000
Film Thickness(mm)	LD:0.02-0.15	LD:0.02-0.15	LD:0.02-0.15
Max Extrusion Output	80kg/hr	130kg/hr	180kg/hr
Gear Box	146*2	173*2	200*2
Screw Diameter(mm)	φ50x2	φ55x2	φ65x2
Screw's Material	38 CRMOALA	38 CRMOALA	38 CRMOALA
Barrel's Material	38 CRMOALA	38 CRMOALA	38 CRMOALA
Barrel's Cooling Fan	250W*2*2	370W*2*2	370W*3*2
Thermo Control (zone)	3*2	3*2	4*2
Driving Motor (kw)	15*2	22*2	30*2
Die Size (mm)	LD:φ250	LD:φ350	LD:φ500
Rotary Die Head	360° Continue Rotary
Thermo Control(zone)	3	3	3
Air Ring	1PCS	1PCS	1PCS
Cooling Blower(kw)	4	5.5	7.5
Roller Width(mm)	φ165*1300	φ165*1600	φ190*2100
Take-UP Motor (kw)	1.5	1.5	2.2
Take-UP Speed(M/min)	5-60	5-60	5-60
Type of Winder	Surface Friction Double Winders
Roller Width (mm)	1300	1600	2100
Winding Motor(KW)	16N.M	1.5KW	1.5KW
Winding Speed(M/min)	5-60	5-60	5-60
Voltage	380V/50HZ/3PHASE	380V/50HZ/3PHASE	380V/50HZ/3PHASE
Cover Dimensins(m)	6.5*2.3*6.5	6.8*2.6*7	7*3.2*7.5
