Three Layers ABA Co-Extrusion Recycling Material Economic Benefit PE Plastic Garbage Bag Film Machine

Product Description

Three layers ABA co-extrusion recycling material economic benefit PE plastic garbage bag film machine

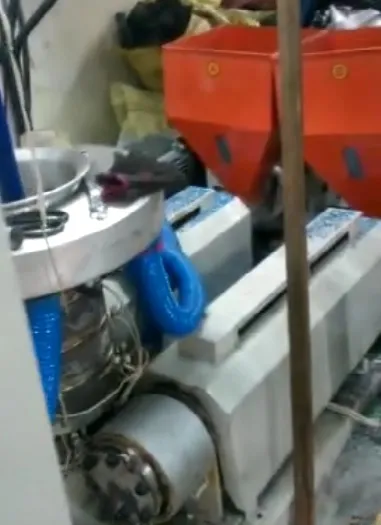

Wenzhou Ruian Songshan ABA PE FILM BLOWING MACHINE
ABA Three Layers Co-extrusion Film Blowing Machine adopts special co-extrusion A+B+A film blowing die and has unique features in the production of HDPE, LDPE and LLDPE material. The physical strength of the film is enhanced through multiple-layers. The three-layer co-extrusion machine only needs two hosts: one is for the inner layer and the outer layer (A layer) and the other is for the interlayer (B layer)

The application of one host machine to supply materials for inner and outer layers which can reduce the configuration of the other host, to cut cost, save energy and lower consumption.
Low pressure polyethylene (HDPE) and linear low density polyethylene (LLDPE) are new varieties of polyethylene in the international market. It has advantages of impact strength, penetration-resistance, environmental stress crack resistance, and low temperature resistance, especially it can be used to make micro-thin films (the film strength of 0.015 mm film is as much as that of 0.03mm high-pressure polyethylene film).

Model	ABA-900	ABA-1200	ABA-1400
main material	HDPE
film width	800mm	1000mm	1200mm
output	60kgs/H	75kgs/H	100kgs/H
screw diameter	45mm×2pcs	50mm×2pcs	55mm×2pcs
gearbox	146	146	173
motor capacity	15KW	18.5KW	22KW
die size	60mm	80mm	100mm
air blower	2.2KW	3KW	5.5KW
roller width	900mm	1200mm	1400mm
taking up speed	0-60m/min
winding type	fraction type single winder
winding diameter	650mm
Dimension	4×3×4.5M	4×3.5×6M	4.5×4×7M
