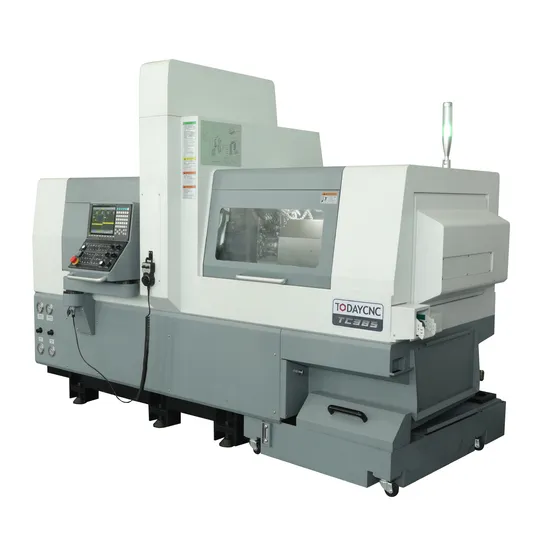

Model: TC385
System available: FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN etc.
Double spindle
5-axis function
Max machining diameter: 38mm
Motorized spindle
Features
* Each axis uses 30 type P-precision roller guide rail and 32 type double nut C3 screw.* Built-in electric spindle,hydraulic clamping,ensure high precision machining.* Main spindle clamping is compatible with both Push forward and pull back modes, not necessary requires large diameter grinding materials.* Main spindle primary processing length is 320mm with guide bush.* Main spindle side milling adopts ER25+ER20 with 2.3 high-power motors, combined with the spindle hydraulic brake, to improve milling efficiency and rigidity.* Main spindle tool holder adopts rectangular-ambulatory-plane layout,reduce machine volume,enhance the rigidity of the tool holder structure, and achieve fast tool change speed.Layout

Product Parameters

Model			TC385-1	TC385-2
			5-axis,dual spindle	5-axis,dual spindle
NC system			SYNTEC 220TB	SYNTEC 220TB
Lathe rated power		kw	25	25
Machining range
Maximum machining diameter		mm	φ38	φ38
Maximum machining length (one-time clamping)With guide bush		mm	320	320
Maximum machining length (one-timeclamping)Non guide bush		mm	85	85
Main spindle power		kw	10	10
Sub spindle power		kw	10	10
Main spindle max through hole dia		mm	φ42	φ42
Main/sub spindle rev speed		rpm	6000	6000
Sub spindle max clamping dia		mm	φ38	φ38
Sub spindle max through hole dia		mm	φ42	φ42
Max tool installed qty			25	25
Main spindle tool
OD Turning tool	Qty x Model		6*φ16+3*φ20	6*φ16+3*φ20
Side- Live tool	Qty x Model		3*ER20+1*ER25	3*ER20+1*ER25
	Drilling dia	mm	φ16	φ16
	Tapping/Threading die dia		M8	M8
	Live tool rev speed	rpm	5000	5000
	Live tool power	kw	2.3	2.3
End face fixed tool	Qty x Model		7*ER20	7*ER20
	Drilling dia	mm	φ13	φ13
	Tapping/Threading die dia		M10	M10
Angular drilling head		mm	--	--
Axial drilling and milling tool		mm	--	--
Sub spingdle tool
End face fixed tool	Qty x Model	mm	5*ER25	3*ER25
	Drilling dia	mm	φ16	φ16
	Tapping/Threading die dia		M10	M10
Axial drilling and milling tool			--	2*ER16
Rapid feed speed		m/min	18(X1)24(X2/Y1/Z1/Z2)	18(X1)24(X2/Y1/Z1/Z2)
Feed motor power		kw	1.7	1.7
The power capacity		kva	25	25
Air pressure device		mpa	0.6	0.6
Weight		kg	4800	4800
Dimensions		mm	3000*1450*2200	3000*1450*2200
