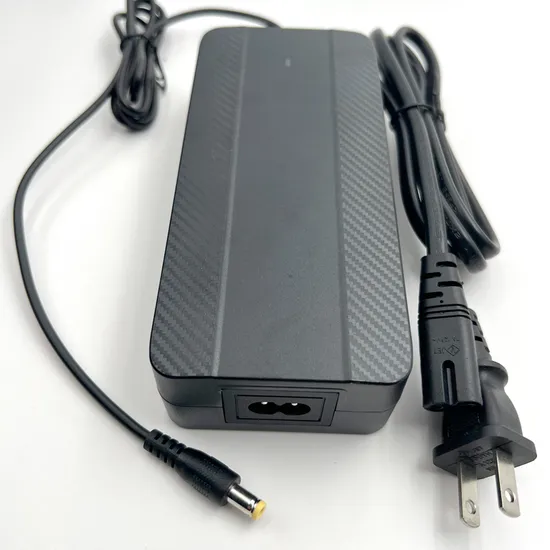

EU Au UK Us Socket Power Supply 12V 24V 36V 42V 48V 2A 3A 4A Battery Charger for Electric Scooter
| US$7.90-9.50 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
GYX-4200300-C8
Charger Application
Home Applications, E-Bike, E-Scooter, E
Nominal Voltage
36V
Charger Style
Automatic
Compatible Battery Type
18650
Certification
KC, PSE, RoHS, TUV, CB, CE, SAA, PSE, GS
Socket Type
for Brazil, E.U., USA, UK, Australia, Jp, Kr, etc
Recyclable
Non-Recyclable
Protection
Ocp, Ovp, Over-Charging, Short Circuit Protection
Input
100-240V/2.5A
Output
42V/3A
Material
PC Fireproof Material, ABS
AC Plug
Us EU Au UK Ar Jr Kr Brazil Argentina
AC Socket
C6 C8 C14
Energy Efficiency
DOE VI
Certificates and Approvals
Kc ETL CE GS PSE SAA Ukca, etc
Warranty
3 Years
AC/DC Cable
1m/1.5m/Customized
DC Connector
5521, Aviation Plug, Xt60, Xiao Mi, XLR, etc
Operating Temperature
0~40ºC
Storage Temperature
-20ºC-85°c
Mtbf
50000 Hours
Color
Black or White
Transport Package
PE Bag Inside, Independent Box Outside
Specification
155.6*71*36.5mm
Trademark
GYX
Origin
Guangdong China
HS Code
8504409999
Production Capacity
300000PCS/Month
Product Description
Product Description| Input | voltage range | 100-240VAC |
| frequency range | 47-63Hz | |
| standby power | 0.3W | |
| efficiency | DOE VI /V | |
| AC input current | 2.5A max at 100VAC at full load | |
| inrush current | 30A Max. @110Vac/60Hz | |
| 60A Max. @230Vac/50Hz | ||
| Output | DC voltage range | 48V max |
| voltage tolerance | ±5% | |
| load current | 2A max | |
| range power | 100W max | |
| line regu lation | ±1% | |
| load regu lation | ±5% | |
| AC plug | US EU UK AU KR BR AR others | |
| DC connector | 5521,5525,aviation plug,C13,Anderson(50A),Lotus plug,XRL(CANNON),XT60,XT90,cigarette lighter plug,etc | |
| DC cord | 1m/1.2m /1.5m / 1.8m /2m /3m,other as your requirment | |
| Operating temperature | 0°C-40°C | |
| Storage temperature | -20ºC-85°C | |
| Protection | over voltage protection,over current protection,short circuit protection | |
| Safety approvals | U L62368/ U L60950/ U L1310/U L 60601/CE/ GS/ SAA/ KC KCC/ PSE/ RCM | |
| MTBF | 50000 hours | |
| Warranty | 36 months | |
| LED indicator light | red---in the charging green---fully charged/no load | |
| Test | 100 fu ll load burn-in test | |
| Application | LED lighting, home applications,E-bike,E-scooter,E-bicycle,E-tools,electric drift trike battery charging,etc. | |
| Package | PE bag inside,white box and carton outside | |
| Carton Size | 46*39*26cm | |
Certificate
FAQ 1.When can I get the quotation ?
GYX: within 24 hours.If you are in a hurry, please call us or email us.
2.What about the lead time for mass production ?
GYX:About 15 days.
3.What about the warranty of your products ?
GYX:We offer 3 year warranty for all the products.
4.How long has your company been in business?
GYX:15 years, and we have 15years experience in lithium battery charge.
5.Does your company have U L certification?
GYX:Yes, we have a lot of U L certifications for different items, and our company are the U L Standard Technical Panel Member.
6.What is your factories capacity for power supply & charger?
GYX:10000~15000pcs per day.
7.What is your payment method?
GYX: T/T in advance, Paypal , Western Union,Pay on ****** and etc.
