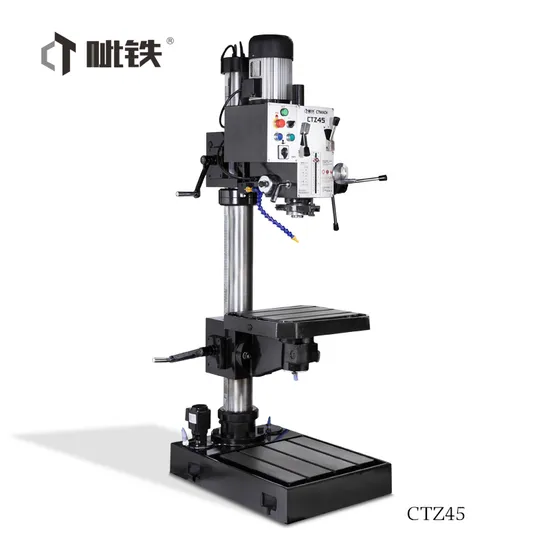

High Speed Vertical Drill Lathe with CE Ctzx45
Basic Info.
Model NO.
CTZX45
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Condition
New
Transport Package
Standard Wooden Packing
Specification
750*1000*1850mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Product Description
| Max.Drilling capacity | 45mm |
| Table size | 380X300mm |
| Size of stand worktable of avaliability | 417X416mm |
| Max.travel of worktable bracket | 600mm |
| Spindle taper | MT4 |
| Spindle travel | 130mm |
| Max.travel of headstock | 250mm |
| Distance from spindle to column guide rail | 283mm |
| Distance from spindle end to table surface | 725mm |
| Max.distance from spindle nose to stand table | 1125mm |
| Step of spindle auto-feeding | 6 |
| Spindle speed range/Grade | 80~1250r/min(6) |
| Motor Power | 1.5KW |
| Motor speed | 1400r/min |
| Net weight/Gross weight | 435KG/485KG |
| Overall dimensions | 750x1000x1850mm |
| Package Size | 770x820x1850mm |
