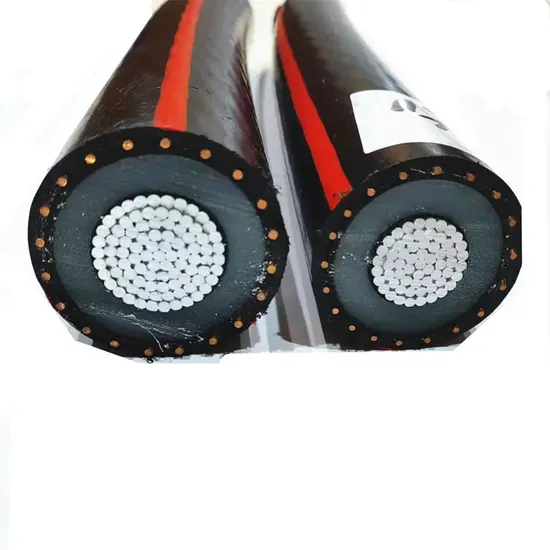

15kv 20kv 26kv 35kv Medium Voltage Cable, XLPE Insulation Single Core 35 50 70 95 120 150mm2 Steel Tape Armoured Mv Power Cable

Product Description

Product Description 15KV 20KV 26KV 35KV Medium Voltage Cable, XLPE Insulation Single Core 35 50 70 95 120 150mm2 Steel Tape Armoured MV Power Cable
APPLICATIONS:
URD ERP or XLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 5kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.

SPECIFICATIONS:
EPR/XLPE insulated URD cables meets or exceeds all applicable requirements of thefollowing standards, and guaranteed all cables manufactured and tested under this standards.
- ANSII ICEA S94-649
- AEIC CS-8
- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231
- UL1072

CONSTRUCTION:
Conductor : Bare aluminium or copper, stranded class B compressed stranding
Conductor Shield :Extruded semi-conducting compound
Insulation : EPR/TRXLP/XLPE
Insulation Shield : Extruded semi-conducting compound
Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)
Encapsulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.
PVC or Semi-conducting jacket are available upon request

MAXIMUM CONDUCTOR TEMPERATURE:
Normal continuous at 90 °C, Overload at 130 °C and Short circuit at 250 °C

FEATURES & BENEFITS, OPTIONS:
- Triple extruded construction by dry curing process guarantees excellent quality of cables
- Triplex type is optional, it brings you saving installation cost
- Strand-filled conductor & Water-blocking jacket is available upon request


Detailed Photos

Product Parameters

Condctor		Copper Neutral (1/3)		diameter(inch)						Weight (Pounds)
AWG orMCM	Stranding	Number of Wires	SizeAWG (Solid)	Conductor	Over Insulation	Over Insul. Shield	Over Neutral Wires	Over Encaps. Jkt.	Conductor	Concentric Neutral	TotalNo Jacket	Total WithJacket
1/0	19 wire	9	14	0.37	1.12	1.23	1.35	1.46	325.8	119.2	659	4926
2/0	19 wire	11	14	0.42	1.17	1.27	1.40	1.50	410.9	146.3	775	808
3/0	19 wire	14	14	0.47	1.22	1.32	1.48	1.59	518.1	185.9	900	923
4/0	19 wire	11	12	0.53	1.28	1.38	1.54	1.71	653.3	228.0	1110	1055
250	37 wire	13	12	0.57	1.33	1.44	1.64	1.81	771.9	282.1	1330	1292
350	37 wire	12	10	0.68	1.44	1.54	1.70	1.89	1081	398.0	1633	1519
500	37 wire	17	10	0.81	1.57	1.72	1.88	2.04	1544	543.5	2002	1886
750	61 wire	25	10	0.99	1.76	1.93	2.11	2.28	2316	801.5	2650	2289
1000	61 wire	33	10	1.14	1.92	2.06	2.27	2.43	3088	1058	3847	2960
