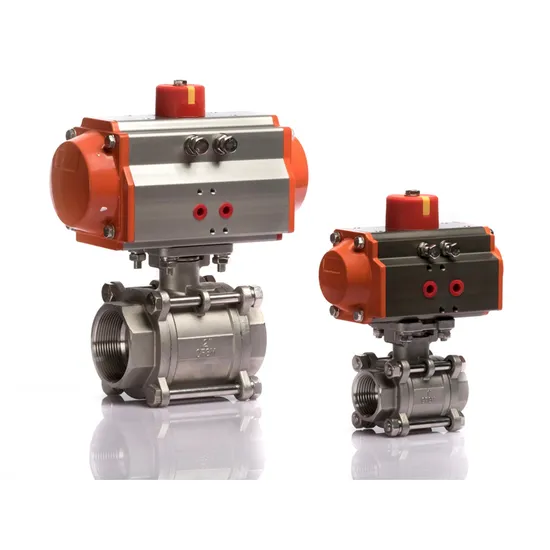

Dn25 Single Acting 2 Way Pneumatic Actuator Ball Valve

Product Description

Double acting stainless steel pneumatic actuator ball valve

1. Actuator type: Double acting, also have single acting
2. Ball valve size: DN25 (ZG 1")
3. Thread standard: BSPT
4. Fluid: Air, Water, steam, water treatment
5. Pressure class: 1000WOG
6. Payment: L/C, Western Union or T/T
7. Mini order quantity: 1 piece

Basic information about Pneumatic actuator ball valve:

Actuator:
Full conformance to the specifications of: ISO5211, DIN3337, VDI/VDE3845, NAMUR. The extruded high strength aluminum bodies are precision honed and hard anodized yielding an internal bore surface that can provide low coefficient of friction, smooth performance and a long service life. All acting surfaces are fitted with high quality bearings, resulting in low friction, quite and high cycle life. The two independent external travel stop adjustment bolts can easily and precisely adjust up to ±5º at both open and closed directions. Multifunction position indicator with NAMUR standard is convenient for mounting accessories. Pre-compressed load springs are convenient for safe mounting and disassemble operations. Die-casted aluminum pistons and end caps are high strength and light weight. Optional Viton and Silicone seals are available for low and high temperature applications.

Valve body material	CF8 or CF8M
Fluid	Air, water, steam
Fluid pressure	0~16bar
Actuator air pressure	0.3~0.8MPa
Contacts	Skype: CaoxL090

Product details:
Packing:
Expert export packing.
Samples:
About KAILNG PNEUMATIC COMPANY:
Ningbo Kailing Pneumatic Co., Ltd. is a leading Chinese company specializing in the manufacture of solenoid valves and pneumatic components. High quality of the raw materials, the precision of the parts, the hard tests during and at the end of production are a warranty of reliability and features. Our real strength is to develop customised products to solve any requirement of utilisation. The production runs conforming to the rigorous ISO 9001/2000 requirements .The product range consists of solenoid valves, process valves,Air source treatment units etc ,which are found in a variety of industrial applications such as machinery, metallurgy, food, textile and waste treatment, single acting 2 way pneumatic actuator ball valve. we keep creating new innovation to offer the best solutions for your fluid control requirements.
