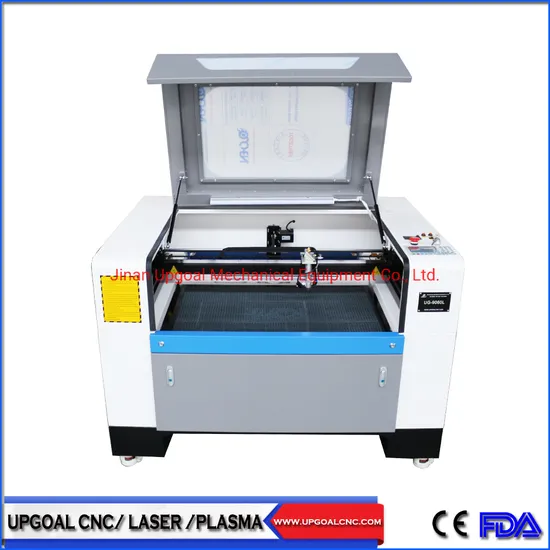

Small 9060 CO2 Laser Engraving Cutting Machine for Non-Woven Fabric & Plywood

Product Description

Small 9060 Co2 Laser Engraving Cutting Machine for Non-woven Fabric & Plywood
Features
Laser Head with infrared dot positioning
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality.
Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 200mm up-down distance.
Laser Tube
Adopted high quality Reci W2 90W Co2 laser tube(maximum 100W), long working time time and stable
Motion System
Imported High precision, low friction force and stand wear and Taiwan CSK brand linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Driving system
Famous Leadshine brand 3 phases motor and driver for whole machine, high precision, fast speed and stable.
Operation System
Advanced USB port RuiDa 6445S DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Industrial chiller CW-5000/3000(Teyu S&A), ensuring the laser tube long time continuous working.
Blow- off system
Air pump(138W) and air blower(550W) for laser head & machine blow-off
Optional rotary Axis for cylinder engraving
Technical Parameters

Effective working area	900*600mm(3*2inch)
Laser type	Co2 sealed-off laser tube,10.64um
Laser tube power	Reci W2, rated power 90W, maximum power 100W
Working table	Honey comb and knife strip, double working table
Lifting table	Auto, up and down 200mm
Driver mode	3 phases stepper motor and Driver, Leadshine brand
Guide rail	Linear square guide rail ( CSK,Taiwan)
Transmission	3M belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	RuiDa RDC6445S(EC)
Control software	RDWorksV8
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller CW-5000/3000 cooling(Teyu S&A)
Water protection system	Yes
Focus	Auto focusing
Positioning	Infrared positing
Blow-off system	Air pump and air blower
Rotary axis	Optional
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC220V/110V, 50/60Hz, single phase
Certificate	CE/FDA

Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Reference Sample Photos
Reference Working Videos
https://youtu.be/wnxVpHP_QRM

For more information, just feel free to contact us!
