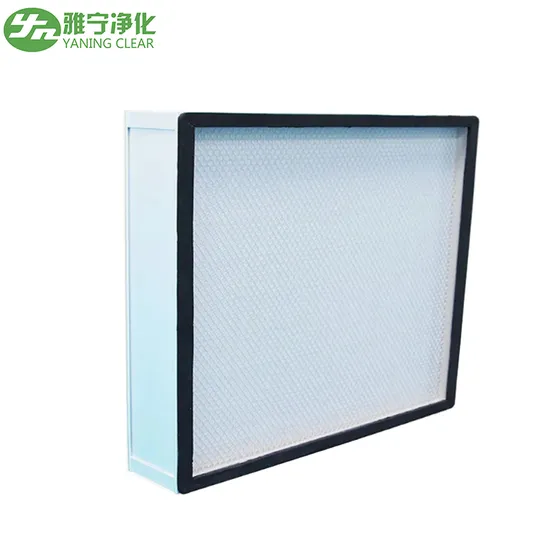

Yaning Certificated Customized Mini-Pleat HEPA Filter for Cleanroom

Product Description

Product Description The "H" series is a member of the HEPA-free and ultra-efficiency filter(ULPA) family designed to meet the required air flow and particle control requirements in the clean room, providing a knife edge suitable for any ceiling type or gasket type frame, all non-partition filter can be customized to meet the requirements of a variety of applications to the maximum. No partition filter for a variety of clean room, clean bench, clean pharmaceutical factory, biological plant, food processing plant and any other need to strictly control the air pollution.


Product Display
Product Parameters Composition and Operating Condition

Frame Material	Sealant	Sealant	Filter Media	Maximum Temperature	Maximum Humidity	Sealing
Aluminum	Polyurethane	Hot melt adhesive	Fiber glass	80ºC	80%	Seamless Polyurethane

Model	Out dimension (W*H*D)(mm)	Air volume (m³/h)	Initial pressure (pa)	Efficiency (%)	Material
					Filter media	Separators	Sealant	Frame
YN-HS-01	320*320*220	500	<120	97-98 Colorimetric method	Glass fiber filter paper	Aluminum or plastic sheet	Polyurethane adhesive	Sandwish wooden board, Galvanized steel plate, Stainless steel plate, Aluminum alloy plate, Aluminum alloy profiles
YN-HS-02	484*484*220	1000
YN-HS-03	610*610*150	1000
YN-HS-04	820*600*150	1200
YN-HS-05	630*630*220	1500
YN-HS-06	968*484*220	2000
YN-HS-07	968*630*220	2500
YN-HS-08	1260*630*220	3000

Model	Out dimension (W*H*D)(mm)	Air volume (m³/h)	Dust capacity (g)	Surface air velocity (m/s)	Initial pressure (pa)	Final pressure (pa)	Efficiency (0.1-0.2um)
YN-HU-01	320*320*96	500	about 450	0.35	≤ 170	400	over 99.9995%
YN-HU-02	610*610*69	700	about 700	0.35
YN-HU-03	484*484*96	1000	about 650	0.45
YN-HU-04	610*610*90	1200	about 950	0.45
YN-HU-05	630*630*96	1500	about 800	0.6
YN-HU-06	915*610*96	2000	about 1200	0.6
YN-HU-07	1220*610*96	3000	about 1600	0.6

Features
1. Unique seamless sealing technology, better sealing effect, more durable, not easy to leak.
2. Small size, light weight. Anodized aluminum alloy frame material is used to facilitate handling and installation.
3. Can provide 50mm 70mm 90mm and other various thickness.
4. The maximum efficiency of capturing 0.3 micron particles of MPPS by the laser scanning count is up to 99.995% (EN1822).
