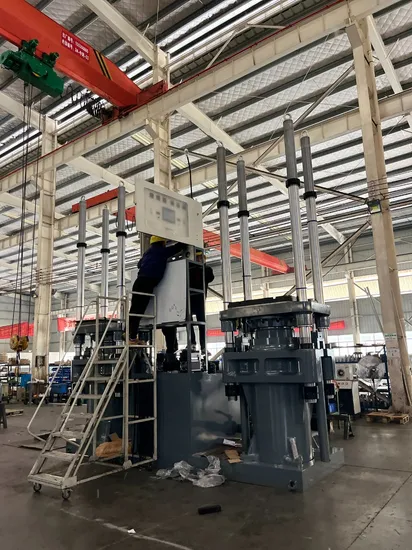

Zhongjun Rubber Machine Injection /Press Compression /Vacuum/Joint Vulcanizing Molding Machine

Product Description

Product Description Machine featuresProportional oil system design,good stability,stable conversion,low failure rate,reliable ,easy to use and safe.The whole machine body has sufficient rigidity,wear resistance,good guiding accuracy and stability.Cooperate with the injection device to realize four-stage injection speed and injection pressure,and three-stage holding pressure.It can meet the requirements of different rubber materials for injection conditions and has rapid production capacity.
Direct pressure structure with fast closing cylinder on both sides in vertical direction.Two small oil cylinders to achieve fast opening and closing,speed and pressure divided into three digital settings;The parallelism between upper and lower hot plates is less than 0.08mm.A master cylinder to achieve clamping force,clamping pressure can be set.Maximum closing pressure protection.Precision electronic ruler controls the mode-locking stroke.Low speed and low pressure controls protect mold safety settings until mold closing is in place.
Detailed Photos
Product Parameters

Type	ZJBH-200T	ZJBH-300T	ZJBH-400T
Injection volumn (cc)	2500	4000	4000
Injection pressure (bar)	1880	1800	1820
Clamping force (Ton)	200	300	400
Heating plate dimension (mm)	560*600	700*700	800*800
Opening stroke (mm)	500	550	600
Minimum mold thickness (mm)	60	60	110
Total power (kw)	33	45	55
Machine size (m)	3.5*1.7*2.7	3.7*1.8*3	5.7*1.8*3
Whole weight (Ton)	7.5	9.5	12

Certifications
Packaging & Shipping
Installation Instructions

FAQ Q1: Where is your factory located?
A1: Hunan Zhongjun Technology Co.,LTD is located at Jinlong High-tech industrial zone ,Yueyang City ,Hunan Province, China

Q2: Are you an integrated supplier for rubber machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: Zhongjun has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 48 to 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 20-50 days.
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, Zhongjun will provide one set standard spare parts to customer according to different machines.
