Chrome Metallic Silver Gold Color Chemical Powder Coating for Aluminum with ISO9001 10%off
Basic Info.
Model NO.
chrome type
Main Raw Material
Epoxy
Method
Spray
Level
Finish Coat
Drying Method
Drying
Certification
RoHS, ISO9001, Reach, FDA, En71, SGS
Substrate
Steel
Components
Film Forming Matter
Formation Mechanism
Conversion Type
Production Name
Chrome Candy Color UV-Resistant Coating Powder COA
Thickness
60-80um
Adhesion
0 Grade
Hardness
2h
Gloss
High Gloss
Expiration
12 Months
Curing
180 Degree/15mins, 200 Degree/10mins
Spraying Mode
High Voltage Electrostatic Spraying 40-80kv
Storage Condition
at About 25 Degree and at Ventilated Indoors
Coating Ratio
8 -12 Squares Per Kilogram
Bending Test
5mm
Square
8-10 Square Meter
Spray Ratio
90%
Package
20kg/Carton
Application
Electrostatic Spray
Transport Package
Lined in with Double PE Bags. Packed in Carton Box
Specification
40cm*30cm*35cm.
Trademark
Wonder
Origin
Guangdong, China
HS Code
3907999990
Production Capacity
1000 Ton/Mon
Product Description

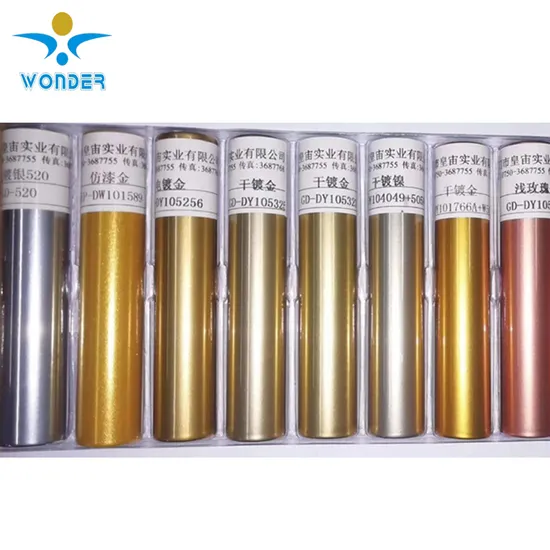

Chrome Metallic Silver Gold Color Chemical Powder Coating for Aluminum with ISO9001
Product Description
Powder coatings are mixed with a certain proportion of the resin, fillers, curing agents and other additives, and then prepared by hot extrusion, crushed and sieved. The products are stable at room temperature storage, and then baking heat melted and solidified to form a smooth and bright permanent coating to achieve the purpose of decoration and anti-corrosion.
| Product Details | |
| Type | Epoxy-Polyester Indoor Chrome Type |
| Color | Chrome |
| Surface Finish | smooth |
| Gloss level | 100-120% |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 50-90 μm film thickness |
| film thickness | 60-80μm |
| Application Recommendation | |
| Application Voltage | 60-90 KV |
| Gun to Component Distance | 15-20CM |
| Curing Temperature | 200 degree / 10 mins |
| electric current | 25-30MA |
| Spray Room | Clear, no other powder coating |
| Air pressure | Appropriate |
| Powder coated Film Mechanical Properties | |
| Adhesion | Cross-cut(3mm),no loss of adhesion |
| Impact Resistance | Direct impact 50kg/cm |
| Pencil Hardness | 2H |
| Cupping Test | 6mm Mandrel |
| Bending Test | 5mm |
| Powder Coated Film Chemical Resistance | |
| Salt Spray Test | 5% NaCl Solution for 500 hours - No change |
| Acid Resistance | 5% HCL for 48 hours dip test - No change |
| Alkali Resistance | 5% NaOH for 48 hours dip test - No change |
| Powder Coating Advantage | |
| Ratio | Spray ratio is 90% |
| Square | 1KG of powder coating can spray 8-10 square meter |
| Adhesive force | Powder Coating adhesive force is stronger 8-10 years |
| Color | Powder Coating is not easy to fade in 5-8 years |
| Storage Stability | |
| Store in ventilated, dry, clean room, temperature < 25ºC | |
| Relative humidity 50-65% | |
| Away from direct sunlight, fire, heat | |
| For best performance, use within 6 months | |
WONDER Powder Coatings are suitable for metal/iron/aluminum surface of each indoor or outdoor product such as furniture, electrical appliance, industrial equipment, sports equipment, kitchenware, shop tool rack, lamps and lanterns and construction machinery etc.
Our factories
FAQ
Q1. Can I have a sample order for powder coating?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for inspection and customs declaration.
Q3. Do you have any MOQ limit for powder coating?
A: Low MOQ, 1-2kg sample powder checking is available.Q4. How to proceed an order for powder coating?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer professional after-sale service for every customer.
